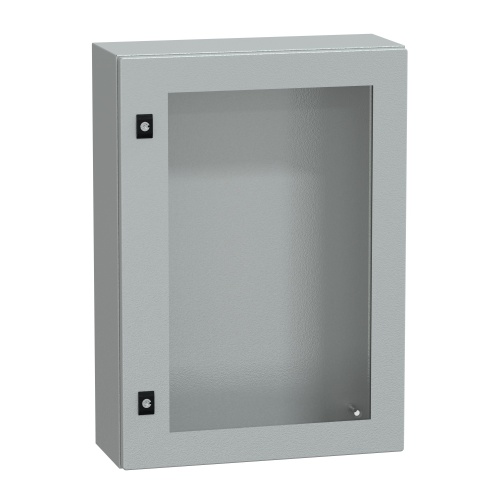

Schneider Electric NSYCRN75200T Spacial CRN Wall-mounting Steel Enclosure - IP66, 27.56" x 19.69" x 7.87" (HxWxD)
Normally In Stock
Code: 592612
Schneider Electric NSYCRN75200T - Steel - 3 mm double-bar lock - IK08 - IP66 - 1 Door: Glass - Without Mounting Plate - Standard - 27.56" x 19.69" x 7.87" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$294.28
Sale Price
$245.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYCRN75200T Spacial CRN is a sturdy and secure electrical enclosure. Made of body steel and featuring a glass door with a 3 mm double-bar lock, this front-accessible unit provides easy operation. The removable door and cable gland plate make installation and maintenance simple. With a reversible 120° door opening and standard gland plate, this wall-mounting enclosure weighs 30.22 lb (13.706 kg) and offers IK08 degree of protection.
Specifications
Enclosure Depth
7.87"
Enclosure Height
27.56"
Manufacturer
Schneider Electric
Enclosure Width
19.69"
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure Impact Rating
IK08
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Door Type
Glass
Enclosure Gland Plate
Standard
Line
Spacial CRN
Features
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application
This compact enclosure is composed of body, cable gland plate, door, lock
The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant
It has IP66 and IK08 protection level, which can help protect against impact, water and dust

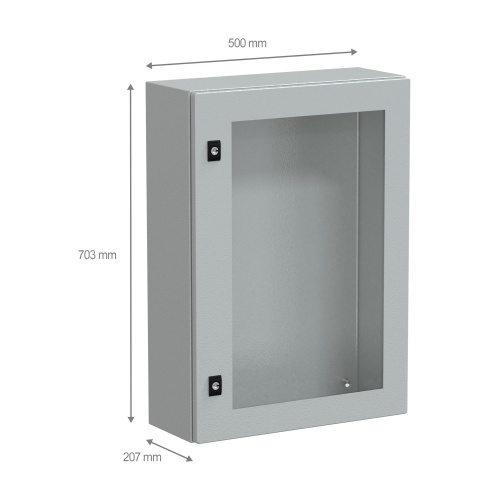

The dimensions are (W) 500 mm x (H) 700 mm x (D) 200 mm
It features a back welded with double profile forming a protected sealed area, sides made from a single folded section
The door type is glazed, it has 1 door(s) and the door opening side is reversible
Equipped with a 3 mm double-bar lock lock type
Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish
This compact enclosure is c.UL certified.
