Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 592587

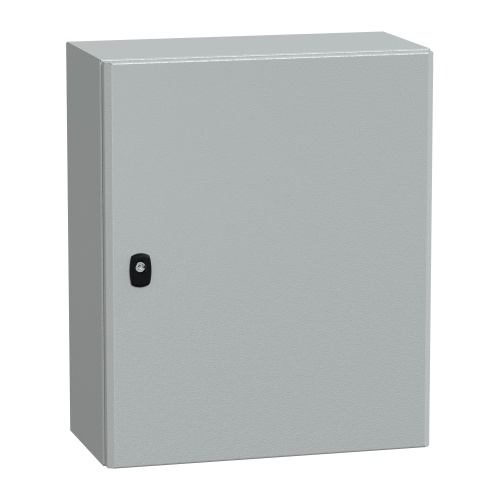

Schneider Electric NSYS3D6525P Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 23.62" x 19.69" x 9.84" (HxWxD)
Normally In Stock
Schneider Electric NSYS3D6525P - Steel - 3-Points lock, 3 mm double-bar - IK10 - NEMA 4X/13 - 1 Door: Solid - Plain Steel - Standard - 23.62" x 19.69" x 9.84" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$231.42
Sale Price
$192.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYS3D6525P is part of the Spacial range, made with sturdy steel construction and a Galvanized steel mounting plate. It features a 3-point lock with a 3mm double-bar for added security. The enclosure is a sleek gray color (RAL 7035) with a solid door that can be reversed to open at 120°. It is designed for front accessibility and has one front face door. The enclosure includes a cable gland plate and mounting plate, both removable. The mounting plate is plain in its design. This product is wall-mountable, with a NEMA 4X/13 degree of protection.
Specifications
Enclosure Depth
9.84"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
19.69"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Plain Steel
Enclosure Height
23.62"
Enclosure Gland Plate
Standard
Line
Spacial S3D
Enclosure Latch Type
3-Point Lock
Features
Spacial S3D wall mounted steel enclosure with plain door

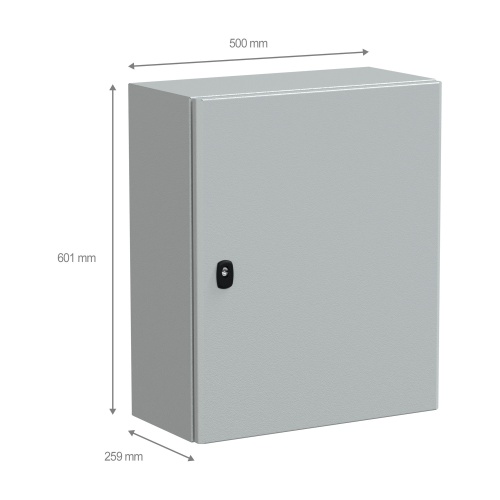

600 x 500 x 250 mm
Single piece body, mounting plate included
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Protection IP 66, IK10, Grey RAL 7035.
