Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

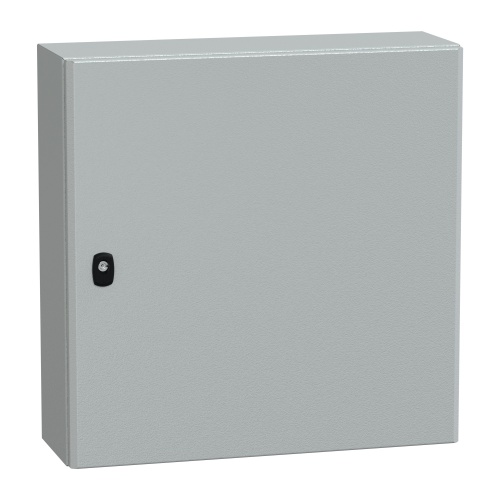

Schneider Electric NSYS3D6620P Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 23.62" x 23.62" x 7.87" (HxWxD)
Normally In Stock
Code: 592583
Schneider Electric NSYS3D6620P - Steel - 3 points lock, 3 mm double-bar - IK10 - NEMA 4X/13 - 1 Door: Solid - Plain Steel - Standard - 23.62" x 23.62" x 7.87" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$201.66
Sale Price
$168.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Spacial S3D enclosure (NSYS3D6620P) is made of sturdy steel and features a galvanized mounting plate for durability. It includes a 3-point lock system for security and a solid reversible door for easy access. The front face of the enclosure has a single door, and the gray color (RAL 7035) adds a sleek touch. The NEMA 4X/13 degree of protection ensures reliable performance in various environments. This wall-mountable enclosure is suitable for front operation accessibility and includes removable parts such as a cable gland plate and a mounting plate.
Specifications
Enclosure Depth
7.87"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
23.62"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Plain Steel
Enclosure Latch Type
3 Point Lock
Enclosure Height
23.62"
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with plain door

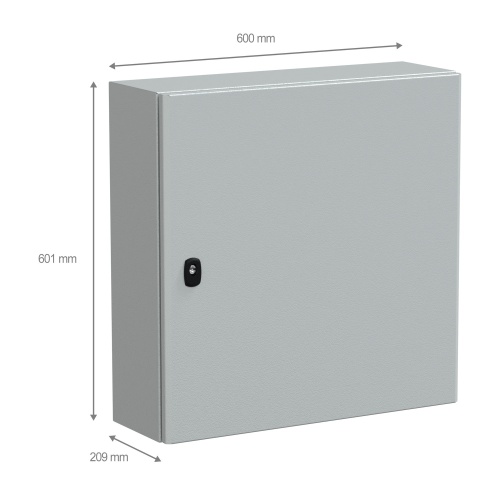

600 x 600 x 200 mm
Single piece body, mounting plate included
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Protection IP 66, IK10, Grey RAL 7035.
