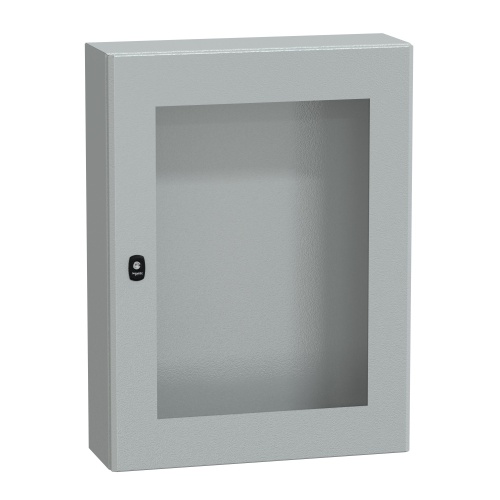

Schneider Electric NSYS3D8620T Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 31.5" x 23.62" x 7.87" (HxWxD)
Normally In Stock
Code: 592582
Schneider Electric NSYS3D8620T - Steel - 3 points lock, 3 mm double-bar - IK08 - NEMA 4X/13 - 1 Door: Glass - Without Mounting Plate - Standard - 31.5" x 23.62" x 7.87" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$266.40
Sale Price
$222.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYS3D8620T Spacial S3D is a front-accessible wall-mounting enclosure with a sturdy steel body and glass door. It features a 3 points lock for added security, 3 mm double-bar for durability, and a reversible 120° door opening. The gray RAL 7035 color provides a sleek appearance. This NEMA 4X/13 rated enclosure includes a removable door and cable gland plate for easy installation and maintenance.
Specifications
Enclosure Depth
7.87"
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
31.5"
Manufacturer
Schneider Electric
Enclosure Width
23.62"
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK08
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Latch Type
3 Point Lock
Enclosure Door Type
Glass
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with glazed door

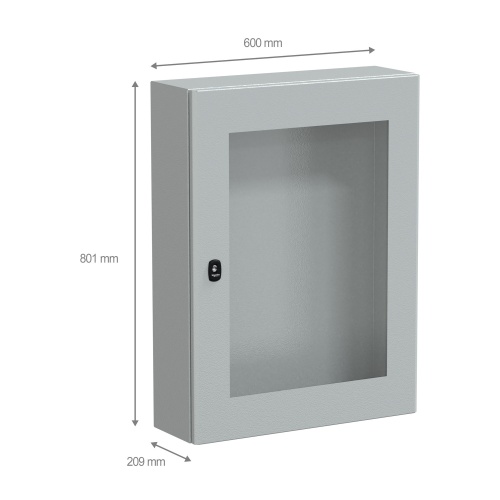

800 x 600 x 200 mm
Single piece body, without mounting plate
Robust construction based on a new design
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Gutter shaped front rail double sheet thickness
Protection IP 66, IK08, Grey RAL 7035
1 cable gland plate included, standard
Extensive range of accessories
Packaging is reusable after assembly.
