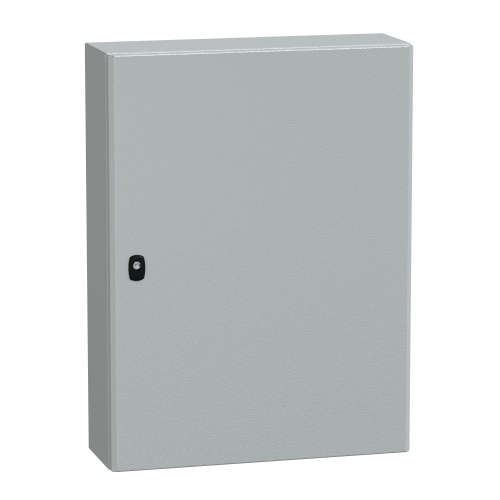

Schneider Electric NSYS3D8620P Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 31.5" x 23.62" x 7.87" (HxWxD)
Normally In Stock
Code: 592525
Schneider Electric NSYS3D8620P - Steel - 3 points lock, 3 mm double-bar - IK10 - NEMA 4X/13 - 1 Door: Solid - Plain Steel - Standard - 31.5" x 23.62" x 7.87" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$258.88
Sale Price
$215.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Spacial S3D enclosure is made of durable steel with a galvanized mounting plate and 3-point lock for security. It comes in a sleek gray color (RAL 7035) with a solid reversible door that opens to a 120° angle. Front operation and 1 front door make it easily accessible, and it is suitable for wall-mounting. This NEMA 4X/13 rated enclosure also includes a standard gland plate.
Specifications
Enclosure Depth
7.87"
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
31.5"
Manufacturer
Schneider Electric
Enclosure Width
23.62"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Plain Steel
Enclosure Latch Type
3 Point Lock
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with plain door

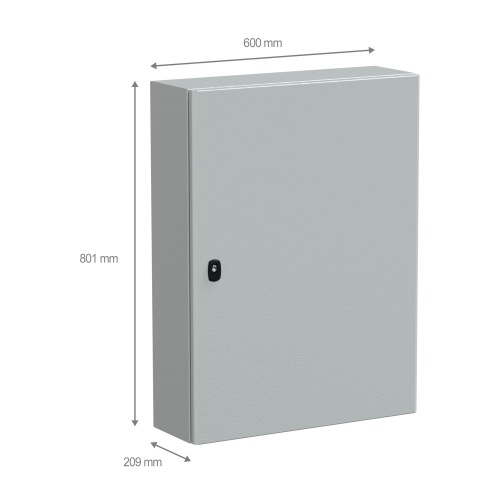

800 x 600 x 200 mm
Single piece body, mounting plate included
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Protection IP 66, IK10, Grey RAL 7035.
