Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

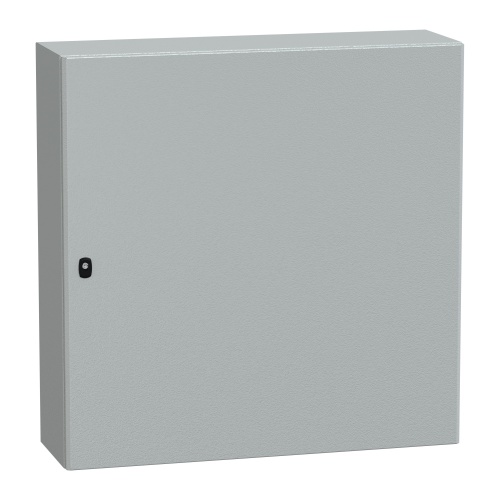

Schneider Electric NSYS3D101030 Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 39.37" x 39.37" x 11.81" (HxWxD)
Normally In Stock
Code: 592496
Schneider Electric NSYS3D101030 - Steel - 3 points lock, 3 mm double-bar - IK10 - NEMA 4X/13 - 1 Door: Solid - Without Mounting Plate - Standard - 39.37" x 39.37" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$425.93
Sale Price
$354.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYS3D101030, part of the Spacial range, is a durable and secure steel enclosure. It features a 3-point lock system, solid door, and reversible door opening. This wall-mountable unit includes a standard gland plate and front accessibility for operation. With a NEMA 4X/13 degree of protection and IK10 rating, it ensures product safety. The Spacial S3D weighs 101.41 lb (46 kg).
Specifications
Enclosure Depth
11.81"
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
39.37"
Manufacturer
Schneider Electric
Enclosure Width
39.37"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Latch Type
3 Point Lock
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with plain door
1000 x 1000 x 300 mm
Single piece body, without mounting plate
Robust construction based on a new design
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Gutter shaped front rail double sheet thickness
Protection IP 66, IK10, Grey RAL 7035
1 cable gland plate included, standard
Extensive range of accessories
Packaging is reusable after assembly.
