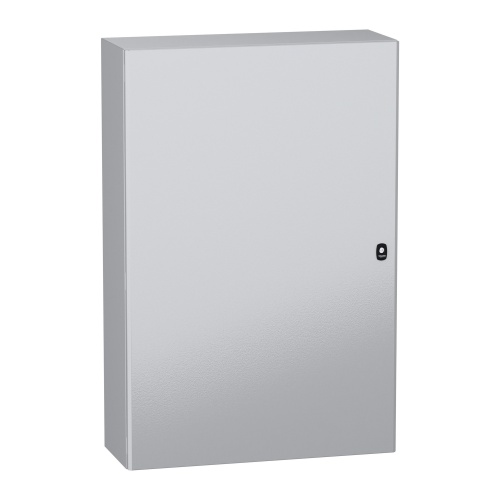

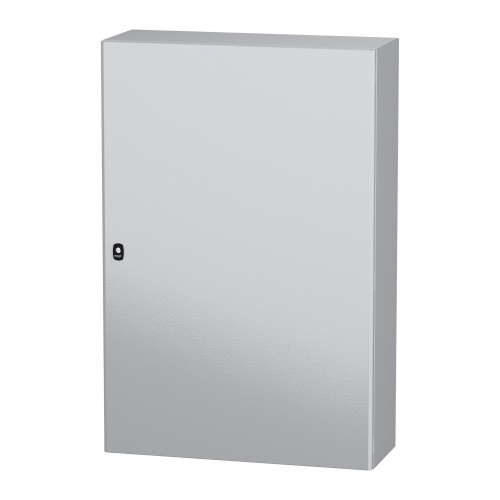

Schneider Electric NSYS3DC12830 Spacial S3DC Wall-mounting Steel Enclosure - NEMA 4X/13, 47.24" x 31.5" x 11.81" (HxWxD)
Normally In Stock
Code: 592494
Schneider Electric NSYS3DC12830 - Steel - 3 points lock, screw driver insert - IK10 - NEMA 4X/13 - 1 Door: Solid - Without Mounting Plate - Without Gland Plate - 47.24" x 31.5" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$681.71
Sale Price
$568.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Spacial S3DC is a steel enclosure with a gray RAL 7035 color. It features a 3 point lock with a screwdriver insert. The door is removable and opens 120° on a reversible side. It has one front face door and is accessible from the front. It has a wall-mounting installation accessory and a NEMA 4X/13 degree of protection. Gland plates are not included.
Specifications
Enclosure Depth
11.81"
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
31.5"
Manufacturer
Schneider Electric
Enclosure Height
47.24"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Latch Type
3 Point Lock
Enclosure Gland Plate
Without Gland Plate
Line
Spacial S3DC
Features
PanelSeT S3D offers steel wall-mounted enclosures up to IP66 and IK10 protection, ideal for industrial and infrastructure applications.
