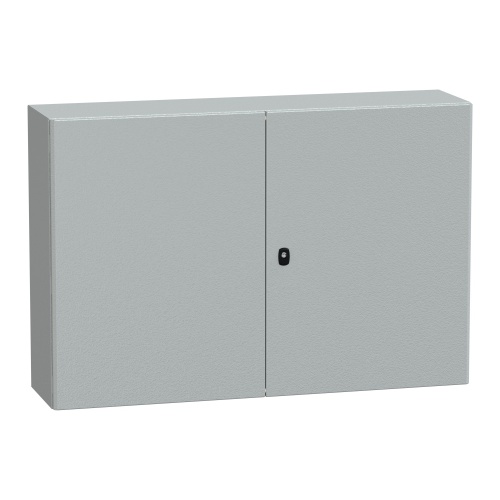

Schneider Electric NSYS3D81230D Spacial S3D Wall-mounting Steel Enclosure - IP55, 31.5" x 47.24" x 11.81" (HxWxD)
Normally In Stock
Code: 592492
Schneider Electric NSYS3D81230D - Steel - 3 points lock, 3 mm double-bar - IK10 - IP55 - 2 Door: Solid - Without Mounting Plate - Standard - 31.5" x 47.24" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$490.79
Sale Price
$408.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Spacial S3D is a steel enclosure with a solid gray door and reversible 120° opening. It features a 3-point lock system and a 3mm double-bar for added security. The front face has two doors, and the cable gland plate is removable by screws. It is designed for wall-mounting and meets electromagnetic field immunity standards.
Specifications
Enclosure Number of Doors
2 Door
Enclosure Depth
11.81"
Enclosure Height
31.5"
Manufacturer
Schneider Electric
Enclosure Width
47.24"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Latch Type
3 Point Lock
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with 2 plain doors
800 x 1200 x 300 mm
Single piece body, without mounting plate
Robust construction based on a new design
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Gutter shaped front rail double sheet thickness
Protection IP 55, IK10, Grey RAL 7035
2 cable gland plates included, standard
Extensive range of accessories
Packaging is reusable after assembly.
