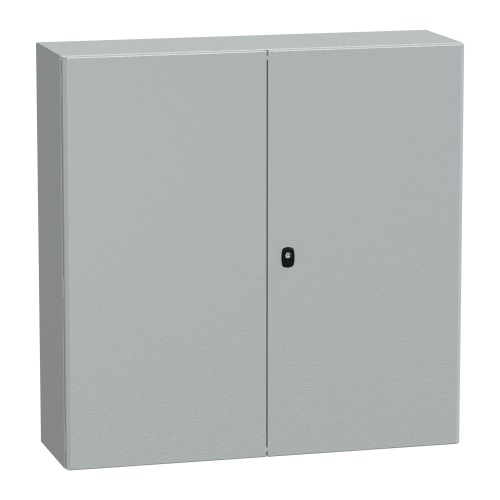

Schneider Electric NSYS3D101030D Spacial S3D Wall-mounting Steel Enclosure - IP55, 39.37" x 39.37" x 11.81" (HxWxD)
Normally In Stock
Code: 592487
Schneider Electric NSYS3D101030D - Steel - 3 points lock, 3 mm double-bar - IK10 - IP55 - 2 Door: Solid - Without Mounting Plate - Standard - 39.37" x 39.37" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$503.23
Sale Price
$419.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYS3D101030D, part of the Spacial range, is a steel enclosure featuring a 3-point lock system with a 3mm double-bar for enhanced security. The door and cable gland plate can be easily removed and the door has a reversible 120° opening side. The Spacial S3D is front-accessible and comes with 2 front-facing doors. It also includes a standard gland plate and wall-mounting installation accessories. With a weight of 101.41 lb (46 kg), this enclosure provides an IK10 degree of protection and complies with electromagnetic field immunity tests.
Specifications
Enclosure Number of Doors
2 Door
Enclosure Depth
11.81"
Enclosure Height
39.37"
Manufacturer
Schneider Electric
Enclosure Width
39.37"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Latch Type
3 Point Lock
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with 2 plain doors
1000 x 1000 x 300 mm
Single piece body, without mounting plate
Robust construction based on a new design
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Gutter shaped front rail double sheet thickness
Protection IP 55, IK10, Grey RAL 7035
2 cable gland plates included, standard
Extensive range of accessories
Packaging is reusable after assembly.
