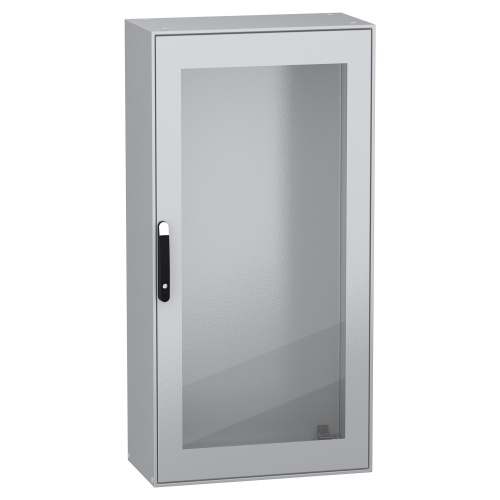

Schneider Electric NSYSM16840T Spacial SM Floor-standing Sheet Steel Enclosure - , 62.99" x 31.5" x 15.75" (HxWxD)
Normally In Stock
Code: 592443
Schneider Electric NSYSM16840T - Sheet Steel - 4 points lock, handle with 5 mm double bar insert - 1 Door: Glass - Without Mounting Plate - Standard - 62.99" x 31.5" x 15.75" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1790.53
Sale Price
$1492.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

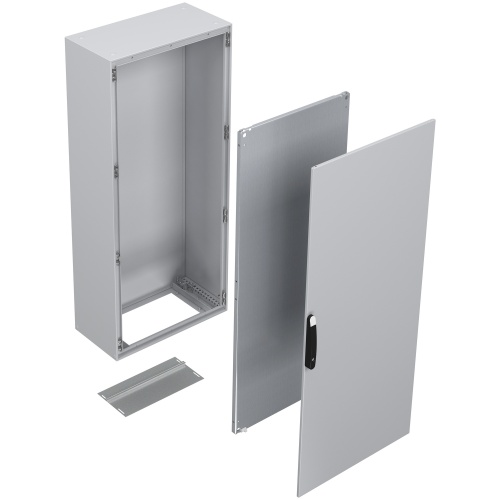

Schneider Electric Spacial SM (Original NSYSM16840T) is a front-accessible, floor-standing enclosure with a single glass door. It features a 4-point lock with a handle and a reversible 120° door opening. Constructed with body and door sheet steel, the enclosure also includes a hinge made of zamak. The removable parts, including the door and mounting plate bracket, are secured with screws. The enclosure is colored in gray (RAL 7035) with a black handle (RAL 9005). The Spacial SM is designed for easy operation and is compatible with standard gland plates. No mounting plate is included.
Specifications
Enclosure Mount Type
Free-Standing
Enclosure Depth
15.75"
Enclosure Width
31.5"
Manufacturer
Schneider Electric
Enclosure Height
62.99"
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure Latch Type
4 Point Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Door Type
Glass
Line
Spacial SM
Enclosure Gland Plate
Standard
Features
Spacial SM monobloc compact steel enclosure with glazed front door

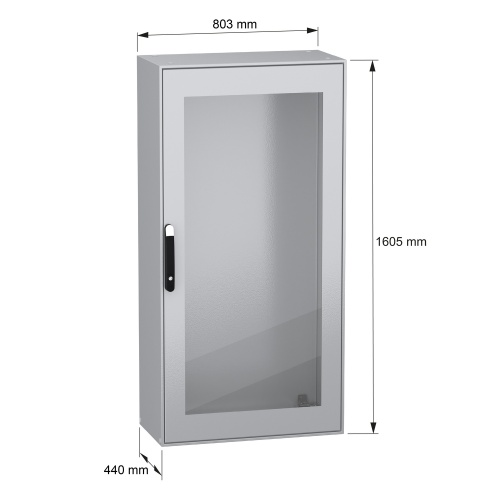

1600 x 800 x 400 mm
Back panel welded, without mounting plate
4 point door locking system with handle DB 5mm
Sheet steel
Protection IP 55, IK08, Grey RAL 7035
4 mounting plate support brackets included.
