Code: 592441

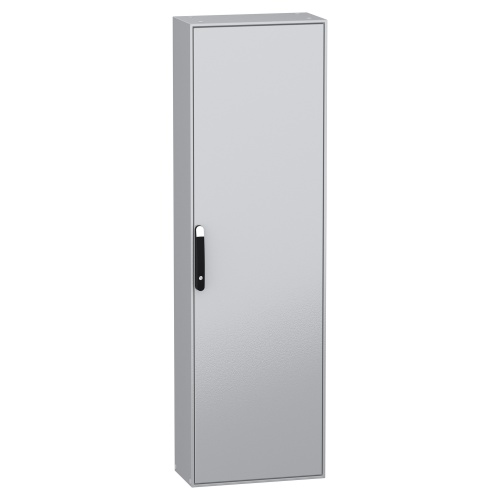

Schneider Electric NSYSM20630 Spacial SM Floor-standing Sheet Steel Enclosure - , 78.74" x 23.62" x 11.81" (HxWxD)
Normally In Stock
Schneider Electric NSYSM20630 - Sheet Steel - 4-Points lock, handle with 5 mm double bar insert - 1 Door: Solid - Without Mounting Plate - Standard - 78.74" x 23.62" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1301.57
Sale Price
$1084.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

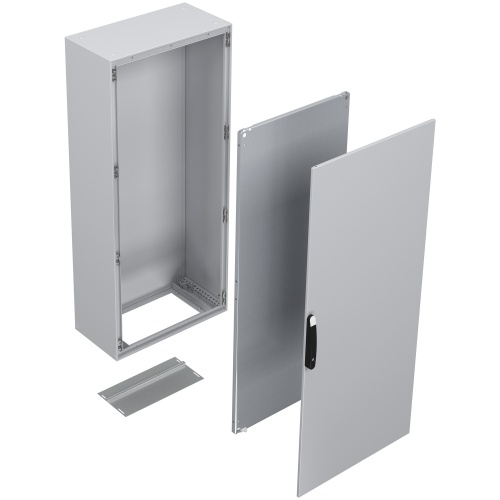

Schneider Electric Spacial SM ( NSYSM20630) is a front-operated floor-standing enclosure made of body and door sheet steel. It features a 4-Points lock with a black handle, 5 mm double bar insert, and reversible solid door. The enclosure is gray (RAL 7035) and includes a standard gland plate. Removable parts include the door (screw hinge) and mounting plate bracket (screw-mounted).
Specifications
Enclosure Mount Type
Free-Standing
Enclosure Depth
11.81"
Manufacturer
Schneider Electric
Enclosure Height
78.74"
Enclosure Width
23.62"
Enclosure Door Type
Solid
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure Mounting Plate
Without Mounting Plate
Line
Spacial SM
Enclosure Gland Plate
Standard
Enclosure Latch Type
4-Point Lock
Features
Spacial SM monobloc compact steel enclosure with plain front door
1999 x 600 x 300 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035
4 mounting plate support brackets and 2 parts cable gland plate included.
