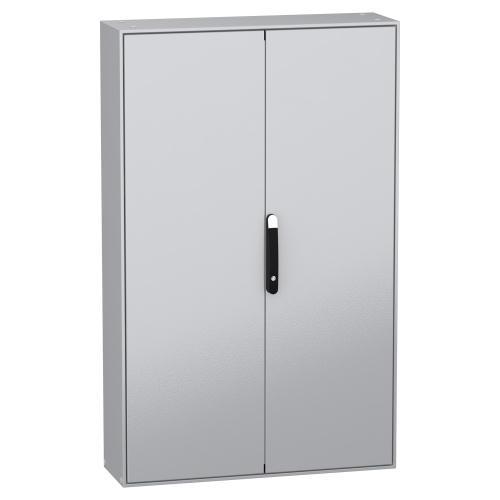

Schneider Electric NSYSM1610302D Spacial SM Floor-standing Sheet Steel Enclosure - , 62.99" x 39.37" x 11.81" (HxWxD)
Normally In Stock
Code: 592435
Schneider Electric NSYSM1610302D - Sheet Steel - 4 points lock, handle with 5 mm double bar insert - 2 Door: Solid - Without Mounting Plate - Standard - 62.99" x 39.37" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1458.12
Sale Price
$1215.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric Spacial SM enclosure (Original NSYSM1610302D) is made of body and door sheet steel, with a hinge made of zamak. It features a 4 points lock with a handle that has a 5 mm double bar insert. The enclosure is colored in gray (RAL 7035) with a black handle (RAL 9005). The removable parts include the door (secured by screws hinge) and the mounting plate bracket (attached with screws). It does not come with a mounting plate. The door is solid and can be opened from either the left or right side (120°). The product is called Spacial SM and is designed for easy accessibility at the front. It has two front doors, a standard gland plate, and is suitable for floor-standing installation.
Specifications
Enclosure Mount Type
Free-Standing
Enclosure Number of Doors
2 Door
Enclosure Depth
11.81"
Manufacturer
Schneider Electric
Enclosure Height
62.99"
Enclosure Width
39.37"
Enclosure Door Type
Solid
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Latch Type
4 Point Lock
Enclosure Mounting Plate
Without Mounting Plate
Line
Spacial SM
Enclosure Gland Plate
Standard
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

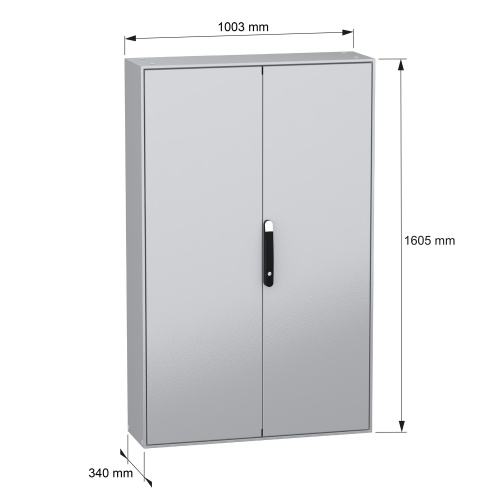

1600 x 1000 x 300 mm
Back panel welded, without mounting plate
4 point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035

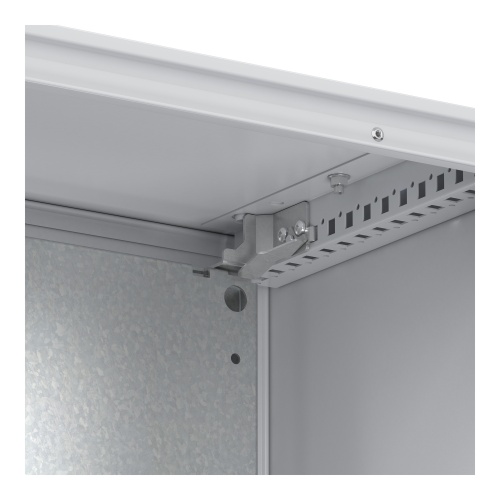

4 mounting plate support brackets and 2 parts cable gland plate included.
