Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

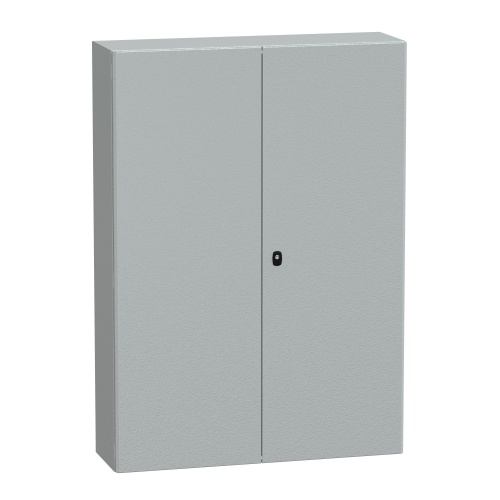

Schneider Electric NSYS3D141030D Spacial S3D Wall-mounting Steel Enclosure - IP55, 55.12" x 39.37" x 11.81" (HxWxD)
Normally In Stock
Code: 592413
Schneider Electric NSYS3D141030D - Steel - 3 points lock, 3 mm double-bar - IK10 - IP55 - 2 Door: Solid - Without Mounting Plate - Standard - 55.12" x 39.37" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1699.56
Sale Price
$1416.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Spacial S3D is a steel enclosure with a gray RAL 7035 color. It features a 3-point lock and a 3 mm double-bar for added security. The door is removable by hinges, and the cable gland plate is fixed by screws. The front-facing enclosure is accessed for operation, with two solid doors that can open 120° in a reversible direction. It is designed for wall-mounting and includes a standard gland plate. The enclosure is tested for electromagnetic field immunity.
Specifications
Enclosure Number of Doors
2 Door
Enclosure Depth
11.81"
Manufacturer
Schneider Electric
Enclosure Height
55.12"
Enclosure Width
39.37"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Latch Type
3 Point Lock
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with 2 plain doors
1400 x 1000 x 300 mm
Single piece body, without mounting plate
Robust construction based on a new design
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Gutter shaped front rail double sheet thickness
Protection IP 55, IK10, Grey RAL 7035
2 cable gland plates included, standard
Extensive range of accessories
Packaging is reusable after assembly.
