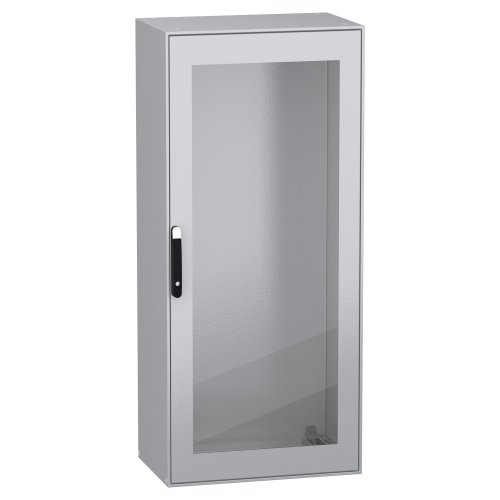

Schneider Electric NSYSM18850T Spacial SM Floor-standing Sheet Steel Enclosure - , 70.87" x 31.5" x 19.69" (HxWxD)
Normally In Stock
Code: 592380
Schneider Electric NSYSM18850T - Sheet Steel - 4 points lock, handle with 5 mm double bar insert - 1 Door: Glass - Without Mounting Plate - Standard - 70.87" x 31.5" x 19.69" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$4186.50
Sale Price
$3488.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

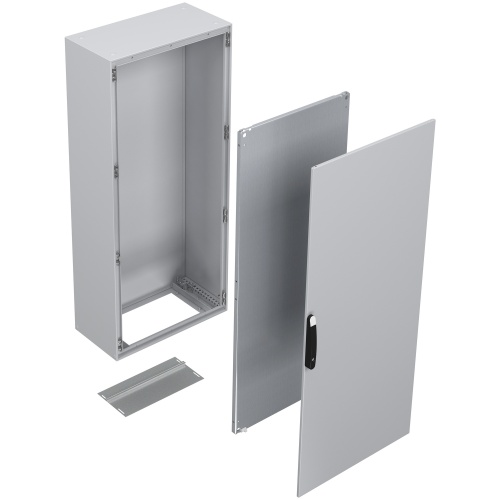

Schneider Electric NSYSM18850T is a Spacial SM enclosure with a glass door, featuring a 4-point lock and a handle with a 5mm double bar insert. The enclosure is constructed with a body and door made of sheet steel, and the hinge is made of zamak. The enclosure is available in gray (RAL 7035) with a black handle (RAL 9005). The door and mounting plate are removable and can be accessed from the front. The door is reversible up to 120°. It is designed for floor-standing installation and includes a standard gland plate.
Specifications
Enclosure Mount Type
Free-Standing
Enclosure Depth
19.69"
Enclosure Width
31.5"
Manufacturer
Schneider Electric
Enclosure Height
70.87"
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure Latch Type
4 Point Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Door Type
Glass
Line
Spacial SM
Enclosure Gland Plate
Standard
Features
Spacial SM monobloc compact steel enclosure with glazed door

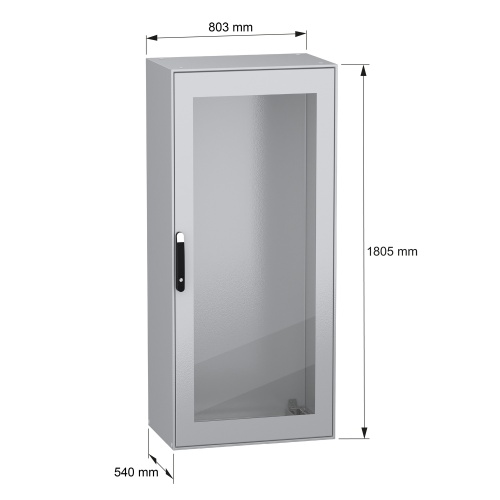

1800 x 800 x 500 mm
Back panel welded, without mounting plate
4 point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK08, Grey RAL 7035
4 mounting plate support brackets included.
