Code: 592354

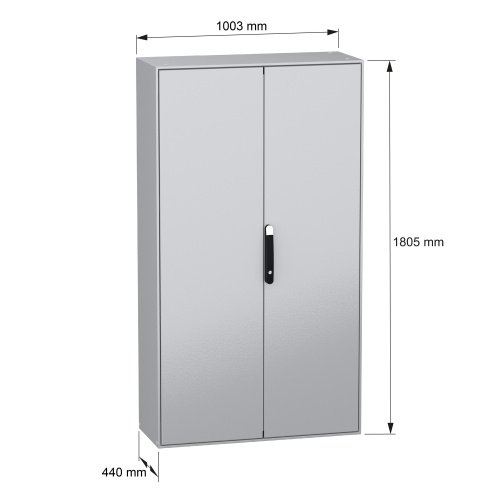

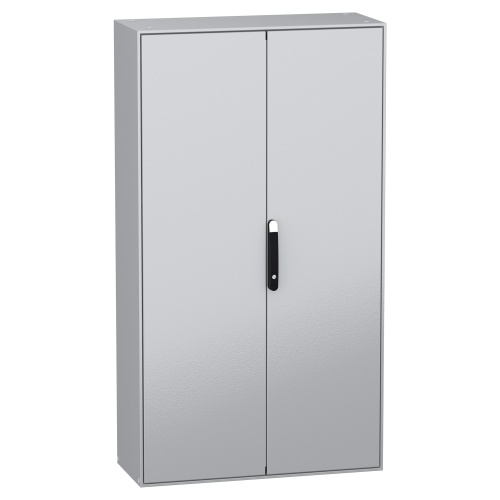

Schneider Electric NSYSM1810402D Spacial SM Floor-standing Sheet Steel Enclosure - , 70.87" x 39.37" x 15.75" (HxWxD)
Normally In Stock
Schneider Electric NSYSM1810402D - Sheet Steel - 4-Points lock, handle with 5 mm double bar insert - 2 Door: Solid - Without Mounting Plate - Standard - 70.87" x 39.37" x 15.75" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1667.27
Sale Price
$1389.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric Spacial SM is a floor-standing enclosure suitable for a variety of applications. It features a body and door made of sheet steel, with a solid door that can be opened from either the left or right side. The enclosure is equipped with a 4-point lock and a handle with a 5mm double bar insert for added security. The gray RAL 7035 color gives it a sleek look, while the black RAL 9005 handle adds a touch of contrast. The front accessibility allows for easy operation, and the enclosure has two front doors for convenience. The gland plate is of standard type, and the mounting plate is not included.
Specifications
Enclosure Mount Type
Free-Standing
Enclosure Number of Doors
2 Door
Enclosure Depth
15.75"
Manufacturer
Schneider Electric
Enclosure Height
70.87"
Enclosure Width
39.37"
Enclosure Door Type
Solid
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Mounting Plate
Without Mounting Plate
Line
Spacial SM
Enclosure Gland Plate
Standard
Enclosure Latch Type
4-Point Lock
Features

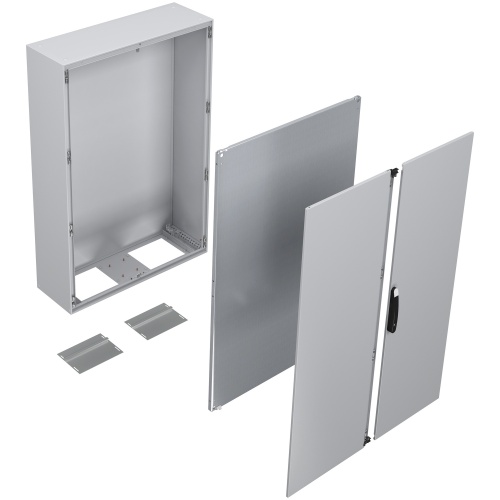

Spacial SM monobloc compact steel enclosure with 2 plain front doors
1800 x 1000 x 400 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Sheet steel
Protection IP 55, IK10, Grey RAL 7035
4 mounting plate support brackets and 2 parts cable gland plate included.
