Code: 592339

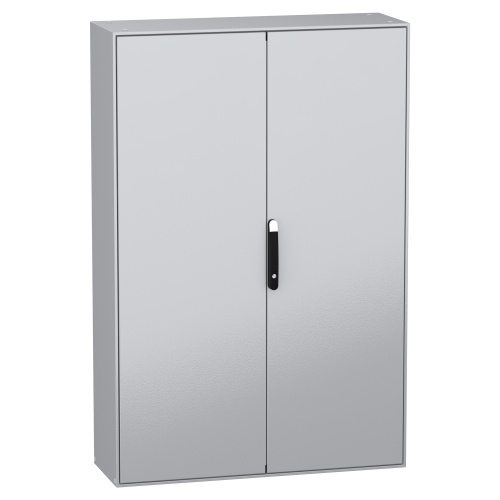

Schneider Electric NSYSM1812402D Spacial SM Floor-standing Sheet Steel Enclosure - , 70.87" x 47.24" x 15.75" (HxWxD)
Normally In Stock
Schneider Electric NSYSM1812402D - Sheet Steel - 4-Points lock, handle with 5 mm double bar insert - 2 Door: Solid - Without Mounting Plate - Standard - 70.87" x 47.24" x 15.75" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$2084.10
Sale Price
$1736.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYSM1812402D Spacial SM enclosure is constructed with sheet steel for the body and door, and features a 4-Point lock with a handle that has a 5mm double bar insert. The enclosure is gray in color with a black handle. The door can be easily removed via screws, and the mounting plate bracket can also be attached with screws. This floor-standing enclosure has a solid door that can open on either the left or right side at a 120° angle. It is designed for front accessibility and includes two doors, a standard gland plate, and does not come with a mounting plate.
Specifications
Enclosure Mount Type
Free-Standing
Enclosure Number of Doors
2 Door
Enclosure Depth
15.75"
Manufacturer
Schneider Electric
Enclosure Width
47.24"
Enclosure Height
70.87"
Enclosure Door Type
Solid
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Mounting Plate
Without Mounting Plate
Line
Spacial SM
Enclosure Gland Plate
Standard
Enclosure Latch Type
4-Point Lock
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

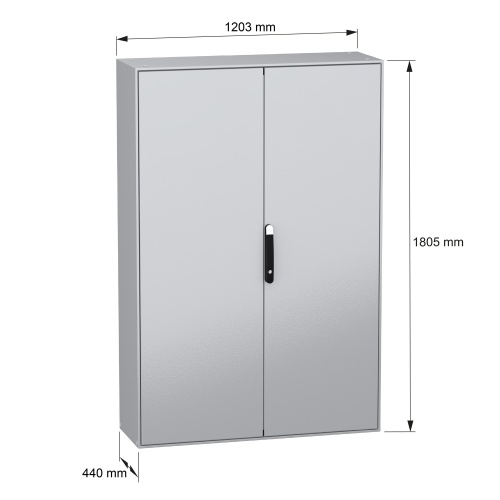

1799 x 1200 x 400 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Sheet steel
Protection IP 55, IK10, Grey RAL 7035
4 mounting plate support brackets and 2 parts cable gland plate included.
