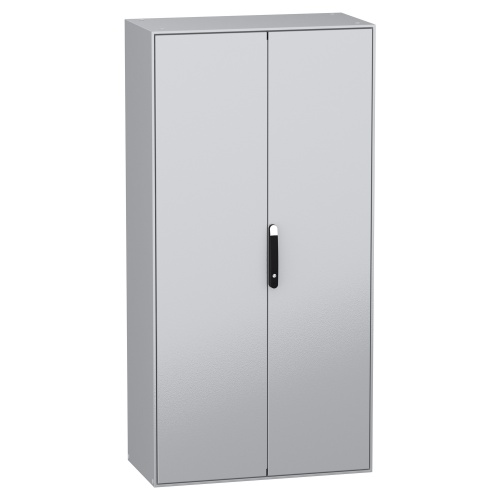

Schneider Electric NSYSM2010502D Spacial SM Floor-standing Sheet Steel Enclosure - , 78.74" x 39.37" x 19.69" (HxWxD)
Normally In Stock
Code: 592330
Schneider Electric NSYSM2010502D - Sheet Steel - 4 points lock, handle with 5 mm double bar insert - 2 Door: Solid - Without Mounting Plate - Standard - 78.74" x 39.37" x 19.69" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$2203.27
Sale Price
$1836.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYSM2010502D from the Spacial range is a sturdy enclosure made of body and door sheet steel, featuring a 4 points lock with a handle equipped with a 5 mm double bar insert. The gray RAL 7035 enclosure is complemented by a black RAL 9005 handle. The door can be easily removed via screws hinges, and the mounting plate bracket is also fastened with screws. This floor-standing model features a solid door, available with left or right 120° opening. It is designed for front operation and comes with a standard gland plate.
Specifications
Enclosure Mount Type
Free-Standing
Enclosure Number of Doors
2 Door
Enclosure Depth
19.69"
Manufacturer
Schneider Electric
Enclosure Height
78.74"
Enclosure Width
39.37"
Enclosure Door Type
Solid
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Latch Type
4 Point Lock
Enclosure Mounting Plate
Without Mounting Plate
Line
Spacial SM
Enclosure Gland Plate
Standard
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

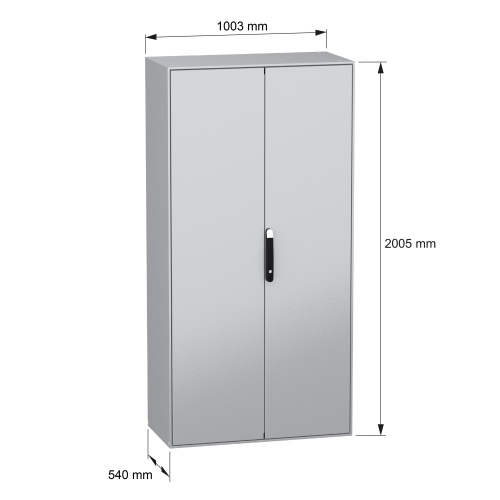

2000 x 1000 x 500 mm
Back panel welded, without mounting plate
4 point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035
4 mounting plate support brackets and 2 parts cable gland plate included.
