Code: 592294

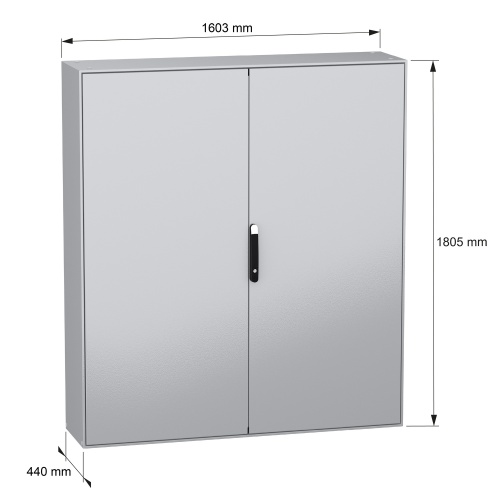

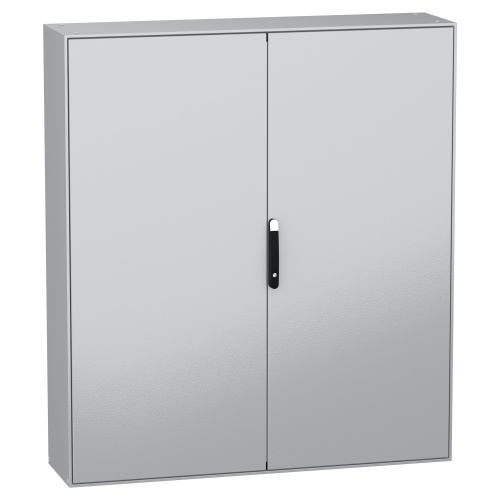

Schneider Electric NSYSM1816402D Spacial SM Floor-standing Sheet Steel Enclosure - , 70.87" x 62.99" x 15.75" (HxWxD)
Normally In Stock
Schneider Electric NSYSM1816402D - Sheet Steel - 4-Points lock, handle with 5 mm double bar insert - 2 Door: Solid - Without Mounting Plate - Standard - 70.87" x 62.99" x 15.75" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$2679.54
Sale Price
$2232.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYSM1816402D from the Spacial range is a sturdy enclosure designed for floor-standing installation. With its body and door made of sheet steel, it features a secure 4-point lock system with a black handle insert. The enclosure's gray and black color combination gives it a sleek appearance. The front-accessible design includes two solid doors that open up to 120° on either side. It does not come with a mounting plate, but the door and mounting bracket are removable for easy access. The enclosure is suitable for standard gland plates and provides reliable protection for your equipment.
Specifications
Enclosure Mount Type
Free-Standing
Enclosure Number of Doors
2 Door
Enclosure Depth
15.75"
Manufacturer
Schneider Electric
Enclosure Width
62.99"
Enclosure Height
70.87"
Enclosure Door Type
Solid
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Mounting Plate
Without Mounting Plate
Line
Spacial SM
Enclosure Gland Plate
Standard
Enclosure Latch Type
4-Point Lock
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors
1799 x 1600 x 400 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035
4 mounting plate support brackets and 2 parts cable gland plate included.
