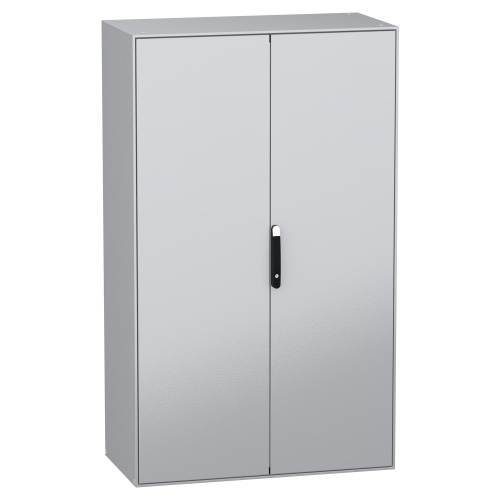

Schneider Electric NSYSM2012602D Spacial SM Floor-standing Sheet Steel Enclosure - , 78.74" x 47.24" x 23.62" (HxWxD)
Normally In Stock
Code: 592269
Schneider Electric NSYSM2012602D - Sheet Steel - 4 points lock, handle with 5 mm double bar insert - 2 Door: Solid - Without Mounting Plate - Standard - 78.74" x 47.24" x 23.62" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$3029.52
Sale Price
$2524.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYSM2012602D is a floor-standing Spacial SM enclosure with a solid door on the front. The sturdy body and door, made of sheet steel, ensure durability. The enclosure features a 4-point lock for security and a 5 mm double bar insert handle for easy operation. The enclosure is designed for accessibility from the front and has a removable door and mounting plate bracket. The door can be opened at either 120° on the left or right side. The enclosure is gray (RAL 7035) in color, with a black handle (RAL 9005). Suitable for various installations, it has a standard gland plate.
Specifications
Enclosure Mount Type
Free-Standing
Enclosure Number of Doors
2 Door
Enclosure Depth
23.62"
Manufacturer
Schneider Electric
Enclosure Width
47.24"
Enclosure Height
78.74"
Enclosure Door Type
Solid
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Latch Type
4 Point Lock
Enclosure Mounting Plate
Without Mounting Plate
Line
Spacial SM
Enclosure Gland Plate
Standard
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

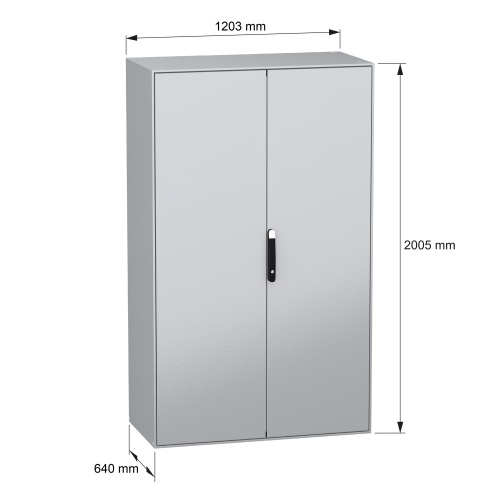

2000 x 1200 x 600 mm
Back panel welded, without mounting plate
4 point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035
4 mounting plate support brackets and 2 parts cable gland plate included.
