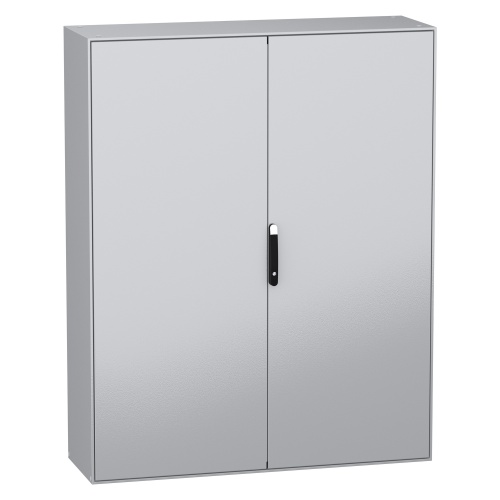

Schneider Electric NSYSM2016502D Spacial SM Floor-standing Sheet Steel Enclosure - , 78.74" x 62.99" x 19.69" (HxWxD)
Normally In Stock
Code: 592242
Schneider Electric NSYSM2016502D - Sheet Steel - 4 points lock, handle with 5 mm double bar insert - 2 Door: Solid - Without Mounting Plate - Standard - 78.74" x 62.99" x 19.69" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$3540.97
Sale Price
$2950.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric Spacial SM is a floor-standing enclosure with a durable body and door made of sheet steel. It features a 4-point lock and a handle with a 5mm double bar insert for secure operation. The enclosure is gray (RAL 7035) with a black (RAL 9005) handle. The doors can be opened on either the left or right side, up to 120°. The front access makes it easy to reach the equipment inside. The enclosure has two doors and a solid door type. It does not include a mounting plate. The gland plate is of a standard type.
Specifications
Enclosure Mount Type
Free-Standing
Enclosure Number of Doors
2 Door
Enclosure Depth
19.69"
Manufacturer
Schneider Electric
Enclosure Width
62.99"
Enclosure Height
78.74"
Enclosure Door Type
Solid
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Latch Type
4 Point Lock
Enclosure Mounting Plate
Without Mounting Plate
Line
Spacial SM
Enclosure Gland Plate
Standard
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

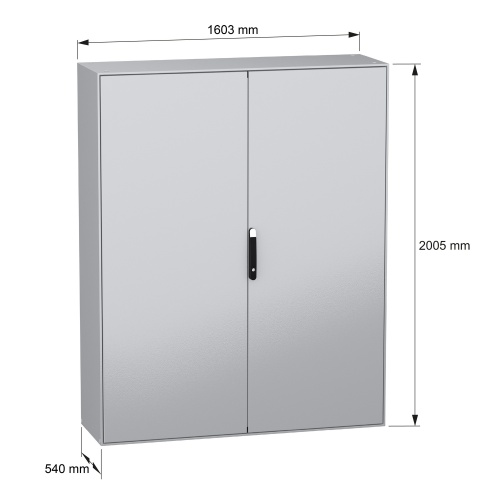

2000 x 1600 x 500 mm
Back panel welded, without mounting plate
4 point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035
4 mounting plate support brackets and 2 parts cable gland plate included.
