Schneider Electric NSYSM2016602DP Spacial SM Floor-standing Galvanized Steel Enclosure - , 78.74" x 62.99" x 23.62" (HxWxD)
Normally In Stock
Code: 592230
Schneider Electric NSYSM2016602DP - Galvanized Steel - 4 points lock, handle with 5 mm double bar insert - 2 Door: Solid - Plain Steel - Standard - 78.74" x 62.99" x 23.62" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$4206.49
Sale Price
$3505.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

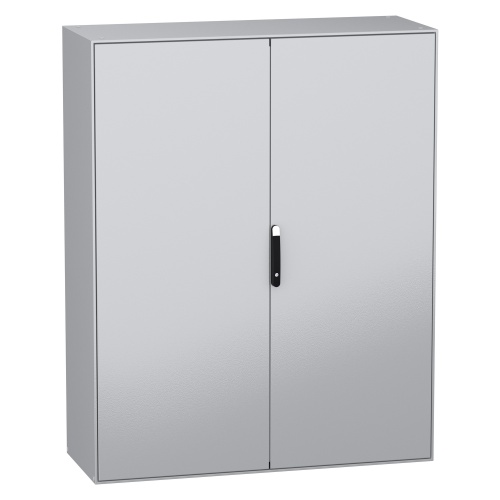

Schneider Electric Spacial SM is a floor-standing enclosure (NSYSM2016602DP) with a solid door (left/right 120° opening). It includes a galvanized steel mounting plate and a 4-point lock system with a handle featuring a 5mm double bar insert. The enclosure is gray (RAL 7035) with a black handle (RAL 9005). The removable parts are the door and mounting plate, which are held in place by screws. This front-accessible unit has two doors, a standard gland plate, and is part of the Spacial range.
Specifications
Enclosure Composition
Galvanized Steel
Enclosure Mount Type
Free-Standing
Enclosure Number of Doors
2 Door
Enclosure Depth
23.62"
Manufacturer
Schneider Electric
Enclosure Width
62.99"
Enclosure Height
78.74"
Enclosure Door Type
Solid
Component
Steel Enclosure
Enclosure Latch Type
4 Point Lock
Enclosure Mounting Plate
Plain Steel
Line
Spacial SM
Enclosure Gland Plate
Standard
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

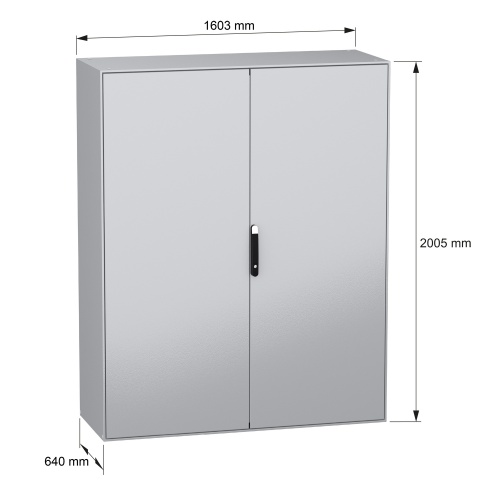

1999 x 1600 x 600 mm

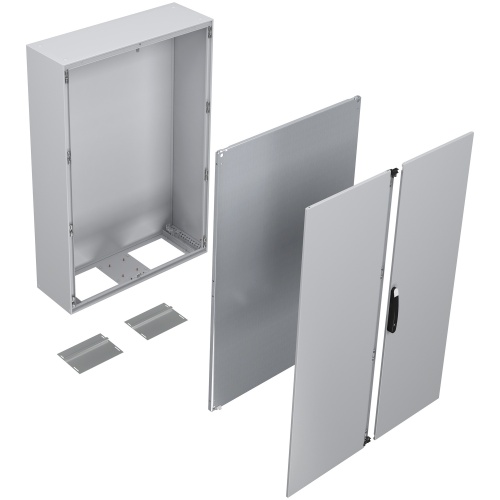

Back panel welded, mounting plate included
4 point door locking system with handle DB 5mm
Sheet steel, galvanized steel for mounting plate
Protection IP 55, IK10, Grey RAL 7035

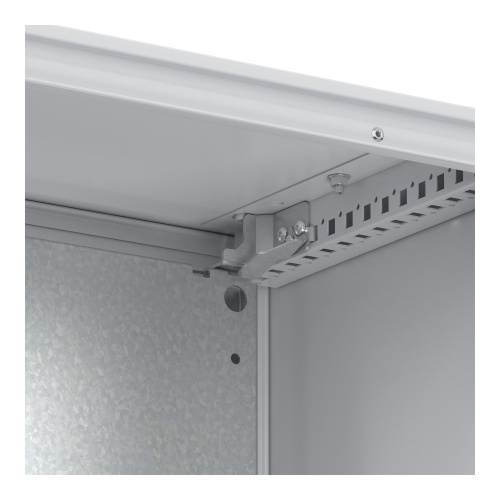

4 mounting plate support brackets included.
