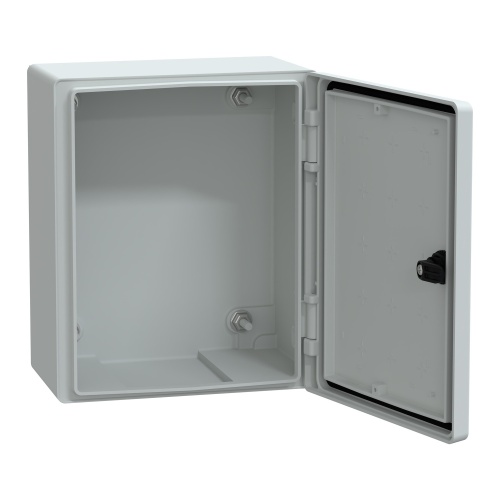

Schneider Electric NSYPLM3025PG Thalassa PLM Wall mounted Fiberglass Reinforced Polyester Enclosure - IP66, 12.13" x 10.04" x 6.3" (HxWxD)

Schneider Electric NSYPLM3025PG Thalassa PLM is a wall-mounted enclosure made of polyester reinforced with fiberglass. It features a solid door with a 3 mm double-bar lock for security. The enclosure offers easy access for operation from the front and has a plain steel mounting plate. With a Class II electrical insulation and IK10 degree of protection, it ensures optimal safety. The enclosure measures 6.30 in (160 mm) in depth, 12.13 in (308 mm) in height, and 10.04 in (255 mm) in width. It can withstand temperatures ranging from -40 to 176 °F (-40 to 80 °C) and has a fire resistance of 1760 °F (960 °C).

Specifications
Component	Non-Metallic Enclosure
Manufacturer	Schneider Electric
Enclosure Door Type	Solid
Enclosure Mount Type	Wall Mount
Enclosure Depth	6.3"
Enclosure Composition	Fiberglass Reinforced Polyester
Enclosure Impact Rating	IK10
Line	Thalassa PLM
Enclosure Latch Type	Double-Bar Lock
Enclosure Mounting Plate	Plain Steel
Enclosure Height	12.13"
Enclosure Width	10.04"
