Schneider Electric NSYPLM64BG Thalassa PLM Wall mounted Fiberglass Reinforced Polyester Enclosure - IP66, 25.47" x 17.17" x 9.84" (HxWxD)
Normally In Stock
Code: 592161
Schneider Electric NSYPLM64BG - Fiberglass Reinforced Polyester - 3 mm double-bar lock - IK10 - IP66 - : Solid - Plain Bakelite - 25.47" x 17.17" x 9.84" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$283.37
Sale Price
$236.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Thalassa PLM is a wall mounted enclosure designed for front accessibility. Made from polyester reinforced with fibreglass, it offers a solid door with a 3mm double-bar lock for security. It has a plain bakelite mounting plate and measures 9.84in x 25.47in x 17.17in in size. With a Class II electrical insulation and IK10 degree of protection, it can withstand temperatures ranging from -40°F to 176°F. The enclosure is fire resistant up to 1760°F and comes with two locks for added security.
Specifications
Enclosure Depth
9.84"
Manufacturer
Schneider Electric
Enclosure Height
25.47"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Composition
Fiberglass Reinforced Polyester
Enclosure Impact Rating
IK10
Line
Thalassa PLM
Enclosure Latch Type
Double-Bar Lock
Enclosure Width
17.17"
Enclosure Mounting Plate
Plain Bakelite
Features
Thalassa PLM wall-mounting polyester enclosure monobloc

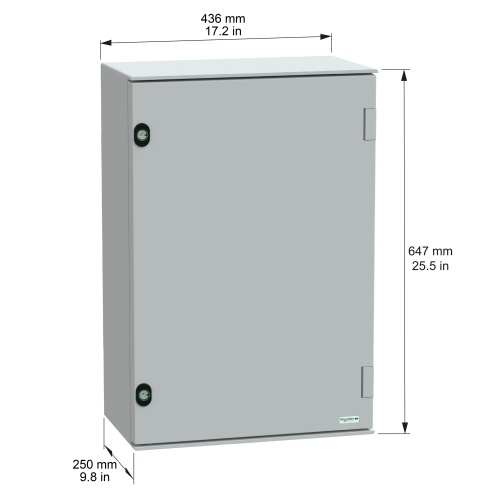

647x 436x 250 mm

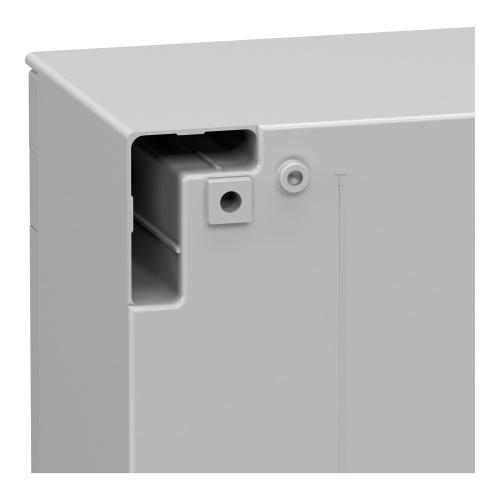

Built-in canopy, one piece moulded with notches in the rear

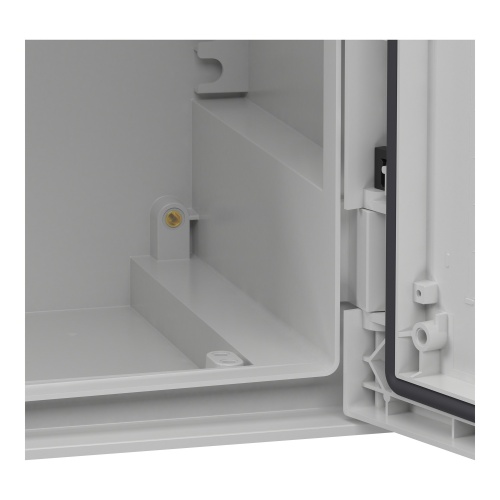

Mounting plate bakelite
2 locks (3 mm double-bar lock)
Accessible front
Polyester reinforced with fibreglass
Grey RAL 7035
IP66, IK10, NEMA (13,4X) 960°C fire resistance.
