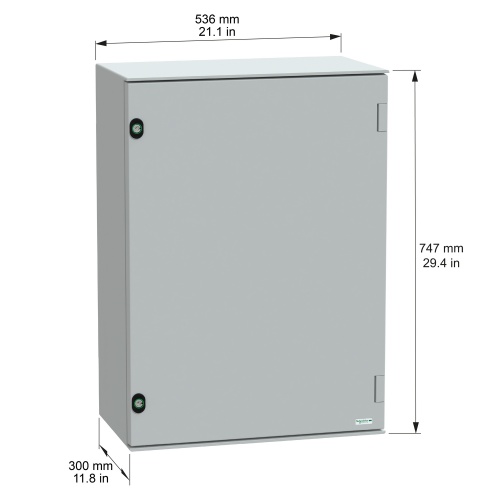

Schneider Electric NSYPLM75G Thalassa PLM Wall mounted Fiberglass Reinforced Polyester Enclosure - IP66, 29.41" x 21.1" x 11.81" (HxWxD)
Normally In Stock
Code: 592160
Schneider Electric NSYPLM75G - Fiberglass Reinforced Polyester - 3 mm double-bar lock - IK10 - IP66 - : Solid - Without Mounting Plate - 29.41" x 21.1" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$431.41
Sale Price
$359.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thalassa PLM enclosure by Schneider Electric provides reliable protection for electrical components. Made of polyester reinforced with fibreglass, it features a solid door with a 3 mm double-bar lock. With a front accessibility for operation and wall-mounting capabilities, this enclosure ensures convenience and durability. The compact size of 11.81 x 29.41 x 21.10 inches (300 x 747 x 536 mm) makes it suitable for various applications. It offers a high level of safety with Class II insulation, IK10 degree of protection, and fire resistance up to 1760 °F (960 °C). Each enclosure includes two locks for added security. Operating in extreme temperatures ranging from -40 to 176 °F (-40 to 80 °C), this enclosure is built to withstand harsh environments.
Specifications
Enclosure Depth
11.81"
Manufacturer
Schneider Electric
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Composition
Fiberglass Reinforced Polyester
Enclosure Impact Rating
IK10
Line
Thalassa PLM
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Height
29.41"
Enclosure Width
21.1"
Features
Ideal for harsh environment
Total electrical insulation (Class II) to avoid electric risks
Large door opening (180º)
