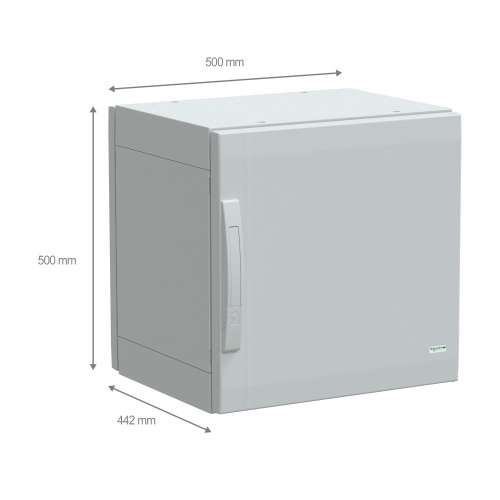

Schneider Electric NSYPLA554G Thalassa PLA Floor-standing Fiberglass Reinforced Polyester Enclosure - NEMA 5/12/13/3S/2/3X/3R/3/1, 19.69" x 19.69" x 16.54" (HxWxD)
Normally In Stock
Code: 592159
Schneider Electric NSYPLA554G - Fiberglass Reinforced Polyester - 2 points lock, 5 mm double-bar - IK10 - NEMA 5/12/13/3S/2/3X/3R/3/1 - 1 Door: Solid - 19.69" x 19.69" x 16.54" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$521.40
Sale Price
$434.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYPLA554G Thalassa PLA enclosure is a polyester reinforced with fiberglass floor-standing enclosure suitable for various applications. It features a solid front door with reversible 120° opening and a 2 point double-bar lock for security. The enclosure offers accessibility for operation from both the rear and front, and has a NEMA degree of protection ranging from NEMA 1 to NEMA 5, ensuring durability and reliability. With a IK10 degree of protection and fire resistance of up to 1760 °F (960 °C), this enclosure is designed to withstand even the harshest environments.
Specifications
Enclosure Mount Type
Free-Standing
Manufacturer
Schneider Electric
Enclosure Width
19.69"
Enclosure Height
19.69"
Enclosure Door Type
Solid
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Enclosure NEMA Rating
NEMA Type 1
Enclosure NEMA Rating
NEMA Type 3S
Enclosure NEMA Rating
NEMA Type 2
Enclosure NEMA Rating
NEMA Type 3X
Line
Thalassa PLA
Enclosure Depth
16.54"
Enclosure Composition
Fiberglass Reinforced Polyester
Enclosure Impact Rating
IK10
Enclosure Latch Type
2 Point Lock
Enclosure NEMA Rating
NEMA Type 5
Features
Thalassa PLA floor standing polyester enclosure
500x 500x 420 mm
Sealed top and bottom part, assembled with side parts
2 points lock, 5 mm double-bar insert
1 door
Accessible front and rear
Reversible 120° opening
Polyester reinforced with fibreglass
Grey RAL 7035
IP65, IK10, NEMA (1,2,12,13)
960°C fire resistance.
