Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 592158
Schneider Electric NSYPLM86VG Thalassa PLM Wall mounted Fiberglass Reinforced Polyester Enclosure - IP66, 33.35" x 25.04" x 11.81" (HxWxD)
Normally In Stock
Schneider Electric NSYPLM86VG - Fiberglass Reinforced Polyester - 3-Points lock, handle with 1242E key lock - IK10 - IP66 - : Solid - Without Mounting Plate - 33.35" x 25.04" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$528.90
Sale Price
$440.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYPLM86VG Thalassa PLM is a polyester reinforced with fiberglass enclosure, featuring a solid door with a 3-point lock and handle with 1242E key lock. It is wall mounted and offers front accessibility for operation. With a nominal dimension of 25.04"x33.35"x11.81" (WxHxD), it provides excellent protection with an IK10 degree of protection and a fire resistance of 1760 °F (960 °C). This enclosure is designed for Class II electrical insulation and can operate in temperatures ranging from -40 to 176 °F (-40 to 80 °C).
Specifications
Enclosure Depth
11.81"
Manufacturer
Schneider Electric
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Composition
Fiberglass Reinforced Polyester
Enclosure Impact Rating
IK10
Line
Thalassa PLM
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Height
33.35"
Enclosure Width
25.04"
Enclosure Latch Type
3-Point Lock
Features
Thalassa PLM wall-mounting polyester enclosure monobloc

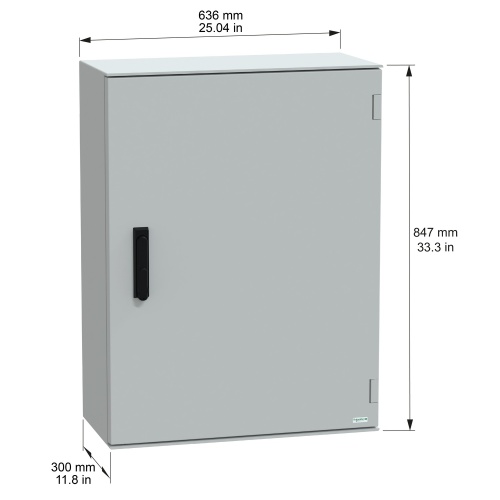

847 x 636 x 300 mm
Built-in canopy, one piece moulded with notches in the rear
Without mounting plate
2 locks (3-Points lock, handle with 1242E key lock)
Accessible front
Polyester reinforced with fiberglass
Grey RAL 7035
IP66, IK10, NEMA (13,4X) 960°C fire resistance.
