Schneider Electric NSYPLM86TG Thalassa PLM Wall mounted Fiberglass Reinforced Polyester Enclosure - IP66, 33.35" x 25.04" x 11.81" (HxWxD)
Normally In Stock
Code: 592157
Schneider Electric NSYPLM86TG - Fiberglass Reinforced Polyester - 3 mm double-bar lock - IK08 - IP66 - : Window - Without Mounting Plate - 33.35" x 25.04" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$556.25
Sale Price
$463.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

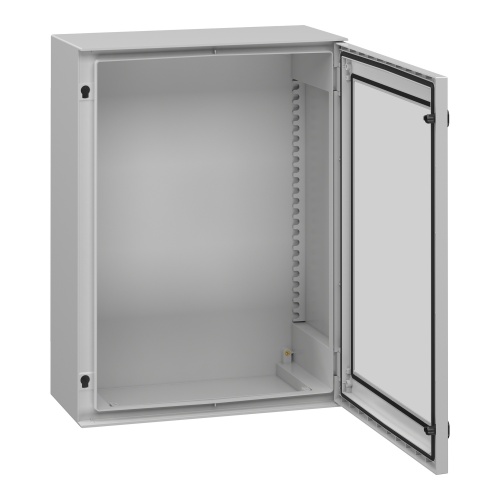

Schneider Electric Thalassa PLM is a wall-mounted enclosure designed for front accessibility. It features a reinforced polyester body with a tempered glass door and a 3 mm double-bar lock for security. The transparent door allows easy viewing of contents. With a nominal size of 25.04 x 33.35 x 11.81 inches, it offers ample space for electrical components. This enclosure is Class II insulated, has an IK08 degree of protection, and can withstand temperatures ranging from -40 to 176 °F. It also provides fire resistance up to 1760 °F.
Specifications
Enclosure Door Type
Window
Enclosure Depth
11.81"
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Composition
Fiberglass Reinforced Polyester
Enclosure Impact Rating
IK08
Line
Thalassa PLM
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Height
33.35"
Enclosure Width
25.04"
Features
Thalassa PLM wall-mounting polyester enclosure monobloc w/glazed door
847 x 636 x 300 mm
Built-in canopy, one piece moulded with notches in the rear
Without mounting plate
2 locks (3 mm double-bar lock)
Accessible front
Polyester reinforced with fibreglass, tempered glass door
Grey RAL 7035
IP66, IK08, NEMA (13,4X) 960°C fire resistance.
