Schneider Electric NSYPLM86PG Thalassa PLM Wall mounted Fiberglass Reinforced Polyester Enclosure - IP66, 33.35" x 25.04" x 11.81" (HxWxD)

Thalassa PLM is a wall-mounted enclosure made of polyester reinforced with fiberglass. It features a solid door with a 3 mm double-bar lock for security. The enclosure has a plain steel mounting plate and a front accessibility for operation. With a nominal depth of 11.81 in, nominal height of 33.35 in, and nominal width of 25.04 in, it provides ample space for electrical components. It offers Class II electrical insulation, IK10 degree of protection, and fire resistance up to 1760 °F. With two locks and an operating temperature range of -40…176 °F, it ensures secure and reliable operation.

Specifications
Component	Non-Metallic Enclosure
Enclosure Depth	11.81"
Manufacturer	Schneider Electric
Enclosure Door Type	Solid
Enclosure Mount Type	Wall Mount
Enclosure Composition	Fiberglass Reinforced Polyester
Enclosure Impact Rating	IK10
Line	Thalassa PLM
Enclosure Latch Type	Double-Bar Lock

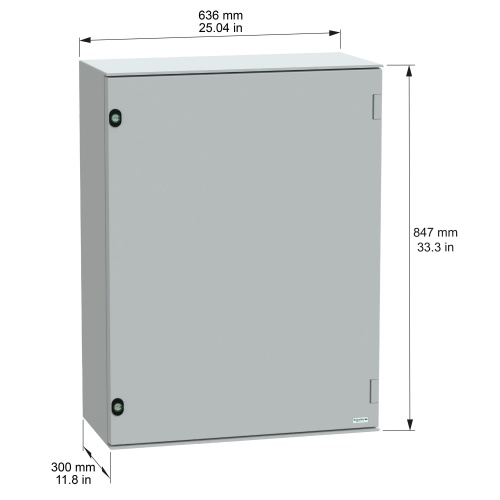

Enclosure Height	33.35"
Enclosure Width	25.04"
Enclosure Mounting Plate	Plain Steel
