Schneider Electric NSYPLM57G Thalassa PLM Wall mounted Fiberglass Reinforced Polyester Enclosure - IP66, 21.1" x 29.41" x 11.81" (HxWxD)
Normally In Stock
Code: 592141
Schneider Electric NSYPLM57G - Fiberglass Reinforced Polyester - 3 mm double-bar lock - IK10 - IP66 - : Solid - Without Mounting Plate - 21.1" x 29.41" x 11.81" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$468.01
Sale Price
$390.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYPLM57G from the Thalassa range is a robust and durable enclosure made of polyester reinforced with fiberglass. With a 3 mm double-bar lock and a solid door that opens downwards, it ensures secure and easy accessibility. This wall-mounted enclosure offers ample space with dimensions of 29.41 in (747 mm) width, 21.10 in (536 mm) height, and 11.81 in (300 mm) depth. It is designed for operation in harsh environments, with a wide ambient air temperature range of -40…176 °F (-40…80 °C). The Thalassa PLM landscape enclosure is fire-resistant up to 1760 °F (960 °C) and has a high IK degree of protection (IK10). It also provides Class II electrical insulation and features two locks for added security. The built-in canopy with notches in the rear ensures easy installation.
Specifications
Enclosure Depth
11.81"
Manufacturer
Schneider Electric
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Composition
Fiberglass Reinforced Polyester
Enclosure Impact Rating
IK10
Line
Thalassa PLM
Enclosure Height
21.1"
Enclosure Width
29.41"
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Features
The Thalassa PLM landscape compact enclosure comes in grey colour and it's designed for multi-purpose application and photovoltaic (Solar)
This compact enclosure is composed of body, door, lock
Featuring a removable door by cut hinges, comes without mounting plate
Has a built-in canopy, one piece moulded with notches in the rear
The compact enclosure is made of polyester reinforced with fibreglass, making it durable and resistant
It has IP66 and IK10 protection level, which can help protect against impact, water and dust

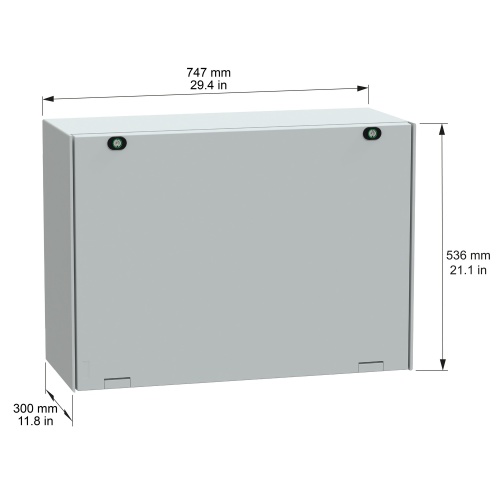

The dimensions are (W) 747 mm x (H) 536 mm x (D) 300 mm
The door type is plain,,and the door opening side is down
Equipped with two 3 mm double-bar lock lock type
It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X
This compact enclosure is BV, UL certified.
