Schneider Electric NSYTBS775 Thalassa TBS Wall mounted ABS Enclosure - IP66, 2.91" x 2.91" x 2.2" (HxWxD)
Normally In Stock
Code: 592140
Schneider Electric NSYTBS775 - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 2.91" x 2.91" x 2.2" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$8.75
Sale Price
$7.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

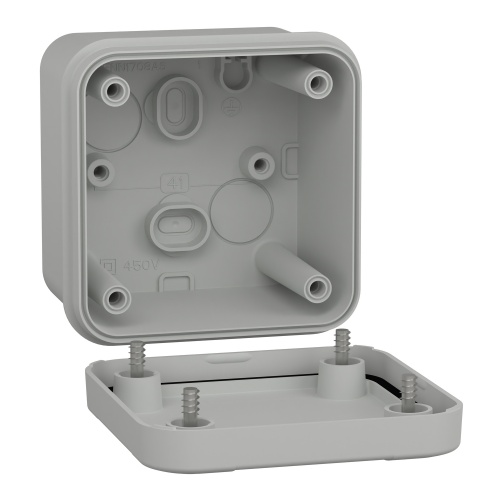

Schneider Electric NSYTBS775 is a Thalassa TBS enclosure designed for wall mounting. Made of ABS, it features a captive screw flat outside sealed area with a low plain cover fixed by metal screws. With dimensions of 2.56in x 2.56in x 1.85in (65mm x 65mm x 47mm), it offers an operating temperature range of -13…140 °F (-25…60 °C) and a glow wire resistance of 1202 °F (650 °C) IEC 60695-2-11. Perfect for electrical insulation, it is available in gray RAL 7035.
Specifications
Enclosure Composition
ABS
Enclosure Depth
2.2"
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Impact Rating
IK07
Enclosure Width
2.91"
Enclosure Height
2.91"
Features
Thalassa TBS industrial ABS box with opaque cover H10

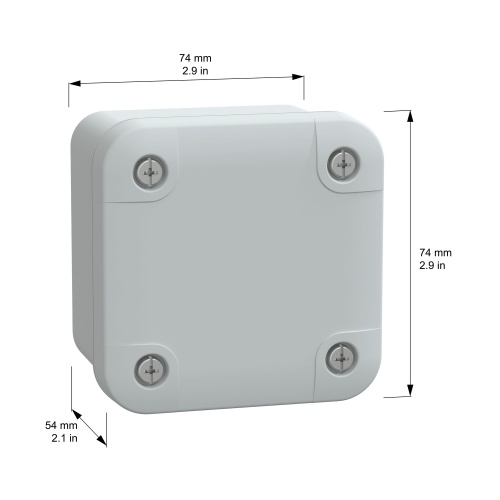

Int is 65 x 65 x 45 mm
Ext is 74 x 74 x 56 mm
Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
