Schneider Electric NSYTBS885 Thalassa TBS Wall mounted ABS Enclosure - IP66, 3.5" x 3.5" x 2.01" (HxWxD)
Normally In Stock
Code: 592138
Schneider Electric NSYTBS885 - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 3.5" x 3.5" x 2.01" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$4.90
Sale Price
$4.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

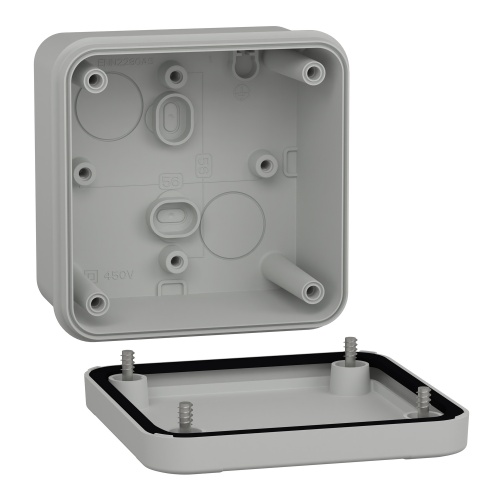

Schneider Electric Thalassa TBS is a gray RAL 7035 wall-mounted enclosure made of ABS material. With a captive screw flat outside sealed area and a low plain cover that is removable using captive screws, this Class II electrical enclosure ensures secure and easy access. It has an internal width, height, and depth of 3.15 in (80 mm), as well as a high glow wire resistance of 1202 °F (650 °C) according to the IEC 60695-2-11 standard. Ideal for a range of applications within an operating temperature range of -13…140 °F (-25…60 °C).
Specifications
Enclosure Composition
ABS
Enclosure Height
3.5"
Manufacturer
Schneider Electric
Enclosure Width
3.5"
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
2.01"
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Impact Rating
IK07
Features
Thalassa TBS industrial ABS box with opaque cover H10

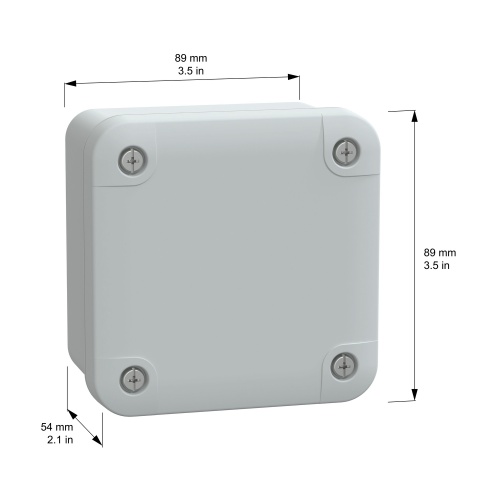

Int is 80 x 80 x 65 mm
Ext is 89 x 89 x 51 mm
Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
