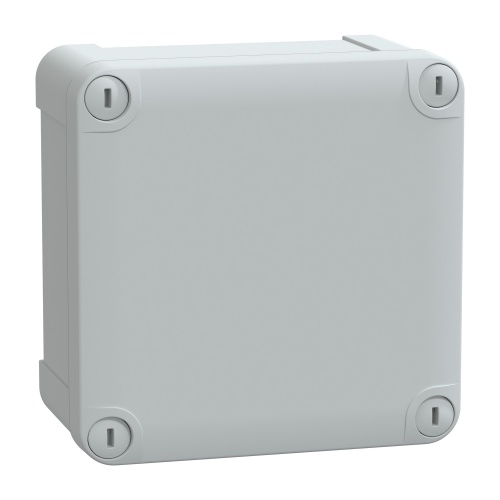

Schneider Electric NSYTBS11116 Thalassa TBS Wall mounted ABS Enclosure - IP66, 4.57" x 4.57" x 2.44" (HxWxD)
Normally In Stock
Code: 592136
Schneider Electric NSYTBS11116 - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 4.57" x 4.57" x 2.44" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$7.66
Sale Price
$6.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

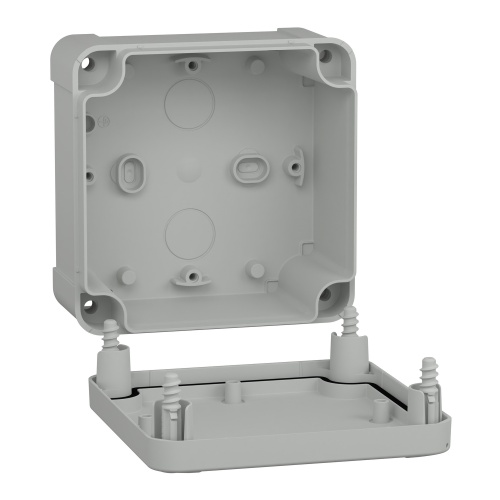

Thalassa TBS is a wall-mounted enclosure designed for electrical applications. Made of durable ABS material, it offers a removable cover with captive screws for easy access. The gray RAL 7035 color and low plain front cover add a sleek finish. With an operating temperature range of -13...140 °F (-25...60 °C) and a compact internal size of 4.13 in (105 mm) width, 4.13 in (105 mm) height, and 2.17 in (55 mm) depth, it provides reliable protection. Additionally, it boasts Class II electrical insulation and glow wire resistance of 1202 °F (650 °C) according to IEC 60695-2-11.
Specifications
Enclosure Composition
ABS
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
2.44"
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Impact Rating
IK07
Enclosure Height
4.57"
Enclosure Width
4.57"
Features
Total electrical insulation (Class II) to avoid electric risks
High protection against dust and water (IP66)
Hard impact resistance (IK07)
