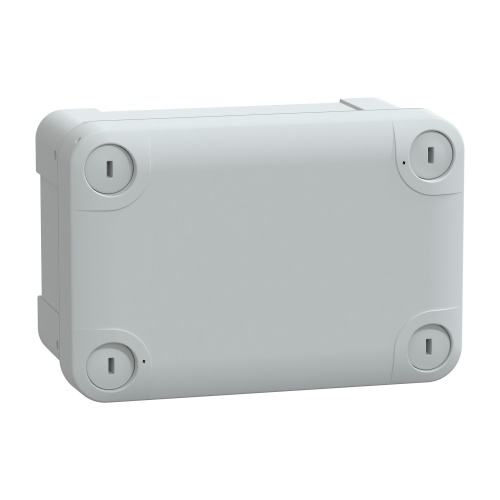

Schneider Electric NSYTBS1397 Thalassa TBS Wall mounted ABS Enclosure - IP66, 5.43" x 3.66" x 2.83" (HxWxD)
Normally In Stock
Code: 592134
Schneider Electric NSYTBS1397 - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 5.43" x 3.66" x 2.83" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$16.32
Sale Price
$13.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thalassa TBS enclosure from Schneider Electric ( NSYTBS1397) is built with durable ABS material, ensuring a robust construction. Its gray RAL 7035 color and low plain cover design give it a sleek look. With a wall-mounted installation and a Class II electrical insulation level, this enclosure is versatile and suitable for various applications. The captive screw flat outside sealed area with plastic screws provides secure enclosure locking. It offers a temperature range of -13 to 140 °F (-25 to 60 °C) and features an internal width of 3.15 in (80 mm), height of 4.92 in (125 mm), and depth of 2.56 in (65 mm). Furthermore, it has a glow wire resistance of 1202 °F (650 °C) according to IEC 60695-2-11 standards.
Specifications
Enclosure Composition
ABS
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Impact Rating
IK07
Enclosure Height
5.43"
Enclosure Width
3.66"
Enclosure Depth
2.83"
Features
Thalassa TBS industrial ABS box with opaque cover H20
Int is 125 x 80 x 65 mm

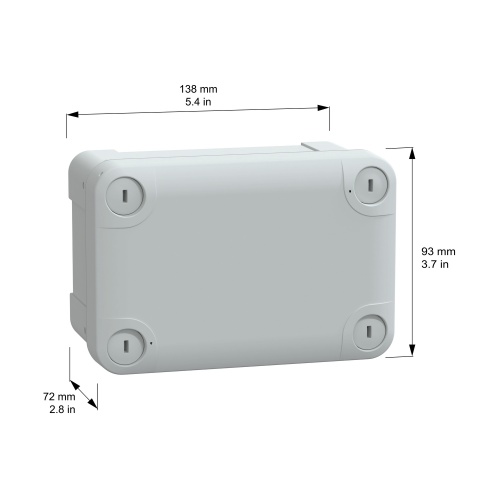

Ext is 138 x 93 x 72 mm
Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
