Schneider Electric NSYTBS1397T Thalassa TBS Wall mounted ABS Enclosure - IP66, 5.43" x 3.66" x 2.83" (HxWxD)
Normally In Stock
Code: 592133
Schneider Electric NSYTBS1397T - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 5.43" x 3.66" x 2.83" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$21.22
Sale Price
$17.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thalassa TBS enclosure (Original Schneider Electric NSYTBS1397T) is a wall-mounted solution for various applications. Made from ABS material, it offers excellent durability. The gray RAL 7035 color and low transparent cover provide visibility while captive screws secure its removable parts. With an internal dimension of 3.15" x 4.92" x 2.56", it can withstand temperatures ranging from -13 °F to 140 °F. It also meets the Glow wire resistance standard of 1202 °F.
Specifications
Enclosure Composition
ABS
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Impact Rating
IK07
Enclosure Height
5.43"
Enclosure Width
3.66"
Enclosure Depth
2.83"
Features
Thalassa TBS industrial ABS box with transparent cover H20
Int is 125 x 80 x 65 mm

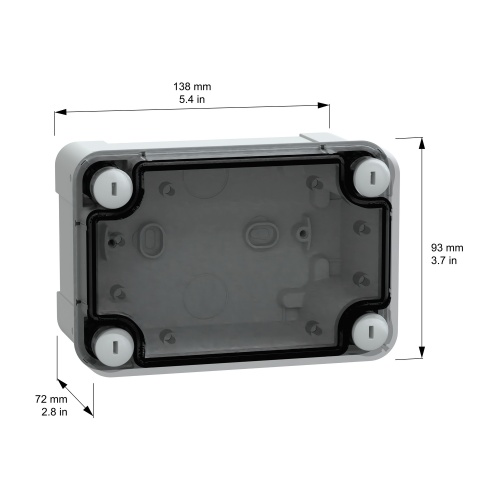

Ext is 138 x 93 x 72 mm
Wall mounted enclosure
Low transparent cover

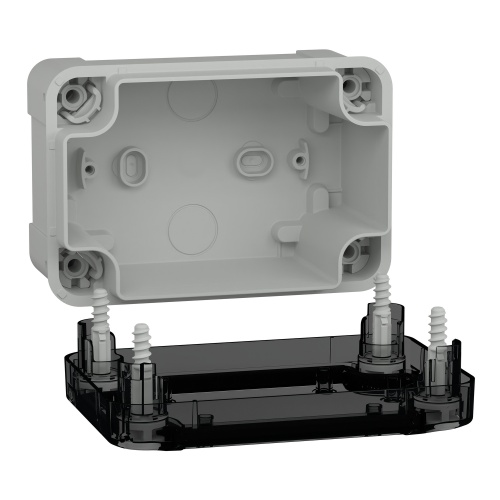

Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
