Schneider Electric NSYTBS111113H Thalassa TBS Wall mounted ABS Enclosure - IP66, 4.57" x 4.57" x 5.24" (HxWxD)
Normally In Stock
Code: 592132
Schneider Electric NSYTBS111113H - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 4.57" x 4.57" x 5.24" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$13.15
Sale Price
$10.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thalassa TBS enclosure, made of ABS material, is a wall-mounted solution for electrical applications. Its gray RAL 7035 color and high plain cover contribute to its sleek design. With captive screws for easy removal of the cover, this Class II insulated enclosure offers a temperature range of -13 to 140 °F (-25 to 60 °C). The internal dimensions are 4.13 x 4.13 x 4.92 in (105 x 105 x 125 mm), providing ample space for your equipment. Furthermore, it offers excellent safety with its glow wire resistance of 1202 °F (650 °C) according to IEC 60695-2-11.
Specifications
Enclosure Composition
ABS
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Impact Rating
IK07
Enclosure Height
4.57"
Enclosure Width
4.57"
Enclosure Depth
5.24"
Features
Thalassa TBS industrial ABS box with opaque cover H80
Int is 105 x 105 x 125 mm

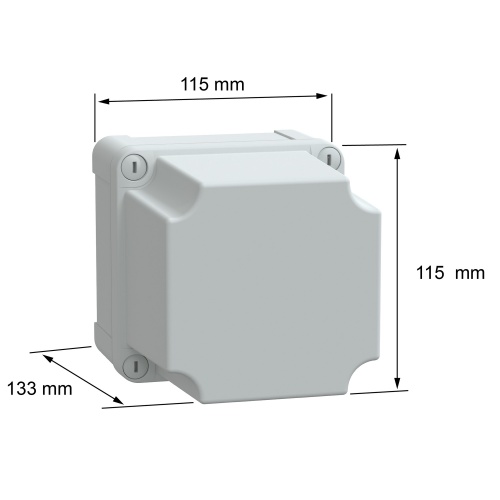

Ext is 116 x 116 x 133 mm
Wall mounted enclosure
High plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
