Schneider Electric NSYTBS19128T Thalassa TBS Wall mounted ABS Enclosure - IP66, 7.52" x 4.76" x 3.43" (HxWxD)
Normally In Stock
Code: 592127
Schneider Electric NSYTBS19128T - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 7.52" x 4.76" x 3.43" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$38.47
Sale Price
$32.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

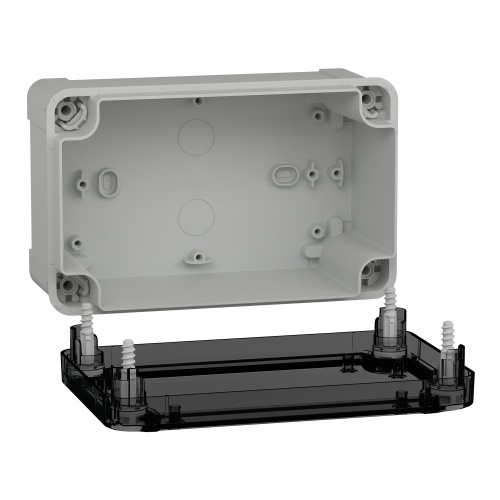

Schneider Electric NSYTBS19128T Thalassa TBS enclosure is a wall-mounted product ideal for electrical applications. Made of durable ABS material, it features a captive screw flat outside sealed area lock for added security. The gray RAL 7035 color and low transparent cover provide easy visibility, and the removable cover with plastic screws allows for convenient access. With an internal width of 4.13 in (105 mm), height of 6.89 in (175 mm), and depth of 3.15 in (80 mm), it offers ample space for equipment. The enclosure also boasts a high glow wire resistance of 1202 °F (650 °C) IEC 60695-2-11, making it suitable for various operating temperatures ranging from -13 to 140 °F (-25 to 60 °C).
Specifications
Enclosure Composition
ABS
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
3.43"
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Impact Rating
IK07
Enclosure Width
4.76"
Enclosure Height
7.52"
Features
Thalassa TBS industrial ABS box with transparent cover H20
Int is 175 x 105 x 80 mm

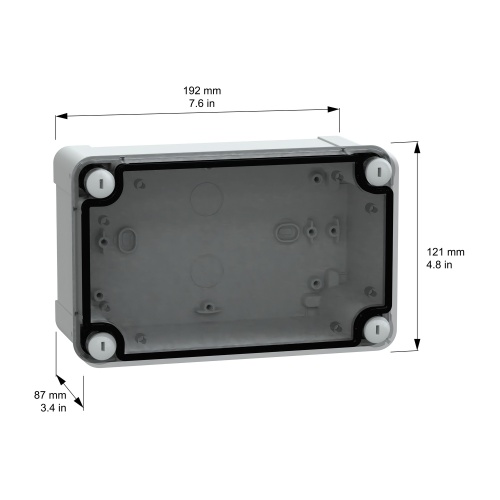

Ext is 191 x 121 x 87 mm
Wall mounted enclosure
Low transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
