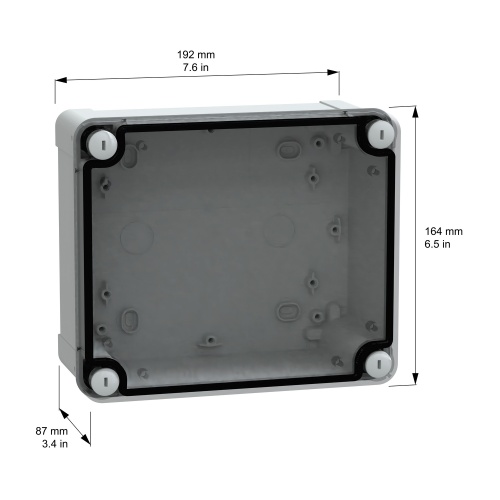

Schneider Electric NSYTBS19168T Thalassa TBS Wall mounted ABS Enclosure - IP66, 7.6" x 6.46" x 3.43" (HxWxD)
Normally In Stock
Code: 592122
Schneider Electric NSYTBS19168T - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 7.6" x 6.46" x 3.43" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$35.68
Sale Price
$29.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Thalassa TBS enclosure ( NSYTBS19168T) is a wall-mounted unit made of ABS material. It features a captive screw flat outside sealed area for secure locking and a Low transparent cover. With an internal dimensions of 5.91 in x 6.89 in x 3.15 in, it provides ample space for housing electrical components. The gray RAL 7035 color and removable cover by captive screws offer ease of use. With an electrical insulation class of Class II and an operating temperature range of -13…140 °F, it is suitable for various applications. The enclosure is also compliant with glow wire resistance standard IEC 60695-2-11 at 1202 °F.
Specifications
Enclosure Composition
ABS
Enclosure Height
7.6"
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
3.43"
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Impact Rating
IK07
Enclosure Width
6.46"
Features
Thalassa TBS industrial ABS box with transparent cover H20
Int is 175 x 150 x 80 mm
Ext is 193 x 164 x 87 mm
Wall mounted enclosure
Low transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
