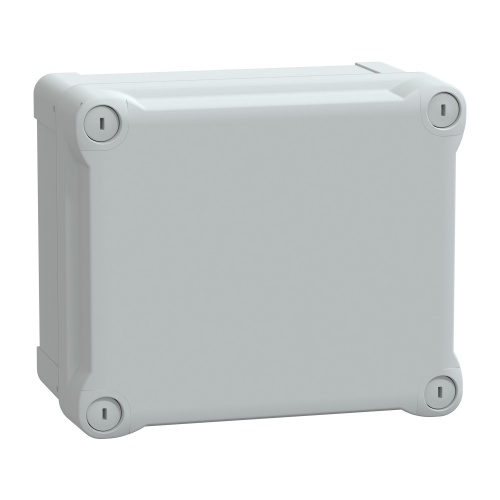

Schneider Electric NSYTBS191610H Thalassa TBS Wall mounted ABS Enclosure - IP66, 7.6" x 6.46" x 4.13" (HxWxD)
Normally In Stock
Code: 592120
Schneider Electric NSYTBS191610H - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 7.6" x 6.46" x 4.13" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$34.92
Sale Price
$29.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

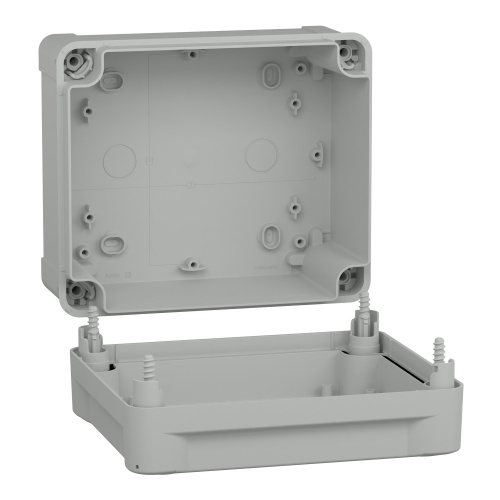

Thalassa TBS enclosure (Schneider Electric NSYTBS191610H) is a durable and reliable wall-mounted enclosure made of ABS material. It features a captive screw flat outside sealed area with a gray RAL 7035 color. The high plain cover is fixed with plastic screws. With an internal dimension of 5.91x6.89x3.94 in (150x175x100 mm), it offers Class II electrical insulation and a wide operating temperature range of -13 to 140 °F (-25 to 60 °C). It meets a glow wire resistance of 1202 °F (650 °C) according to IEC 60695-2-11.
Specifications
Enclosure Composition
ABS
Enclosure Height
7.6"
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
4.13"
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Impact Rating
IK07
Enclosure Width
6.46"
Features
Thalassa TBS industrial ABS box with opaque cover H40
Int is 175 x 150 x 100 mm

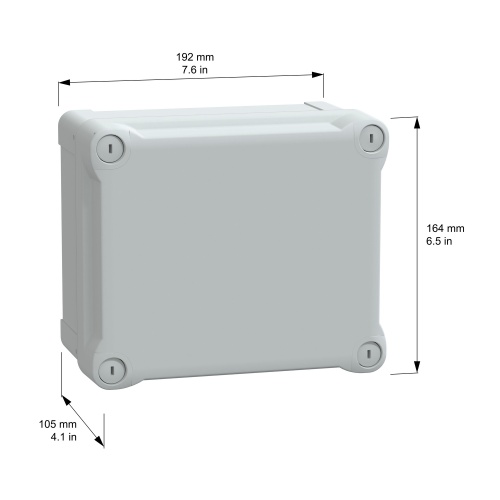

Ext is 193 x 164 x 105 mm
Wall mounted enclosure
High plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
