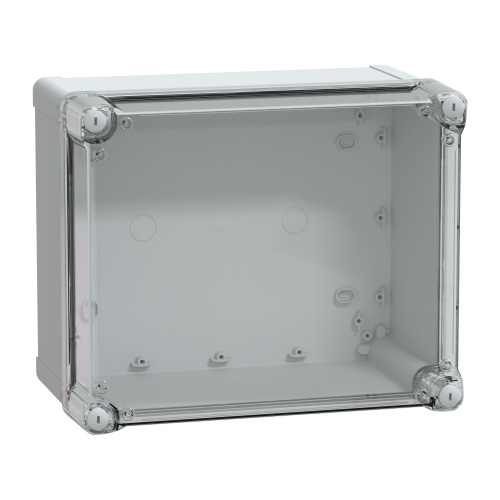

Schneider Electric NSYTBS292416HT Thalassa TBS Wall mounted ABS Enclosure - IP66, 11.46" x 9.49" x 6.61" (HxWxD)
Normally In Stock
Code: 592092
Schneider Electric NSYTBS292416HT - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 11.46" x 9.49" x 6.61" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$114.47
Sale Price
$95.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYTBS292416HT (Thalassa TBS) is a wall-mounted enclosure designed for electrical applications. Made of ABS, it features a gray RAL 7035 enclosure with a transparent high transparent cover. The captive screw flat outside sealed area ensures secure locking, while the removable parts simplify maintenance. With Class II electrical insulation and a wide operating temperature range (-13...140 °F), it offers reliable protection. The internal dimensions of 8.86 in (W) x 10.83 in (H) x 6.30 in (D) provide ample space. Compliant with IEC 60695-2-11, this enclosure also offers 1202 °F glow wire resistance.
Specifications
Enclosure Composition
ABS
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Width
9.49"
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Depth
6.61"
Enclosure Impact Rating
IK07
Enclosure Height
11.46"
Features
Thalassa TBS industrial ABS box with transparent cover H60
Int is 275 x 225 x 160 mm

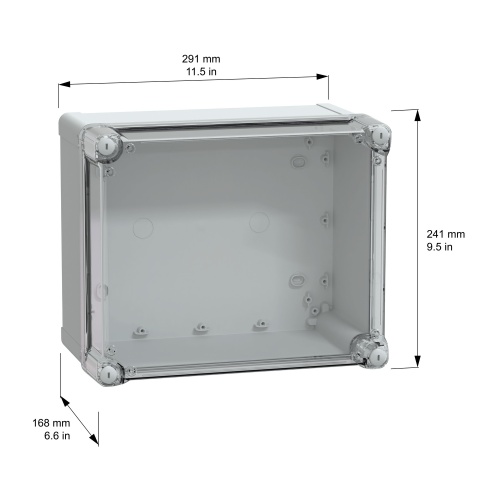

Ext is 291 x 241 x 168 mm
Wall mounted enclosure
High transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
