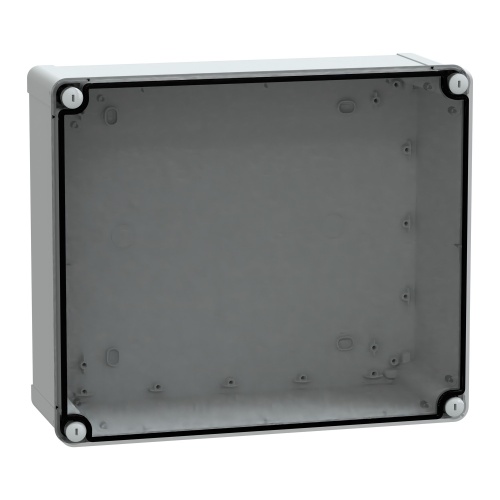

Schneider Electric NSYTBS342912T Thalassa TBS Wall mounted ABS Enclosure - IP66, 13.43" x 11.46" x 5.04" (HxWxD)
Normally In Stock
Code: 592089
Schneider Electric NSYTBS342912T - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 13.43" x 11.46" x 5.04" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$141.12
Sale Price
$117.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYTBS342912T Thalassa TBS enclosure, made of ABS material, provides a durable and secure solution for wall mounting with its captive screw flat outside sealed area lock type. The gray RAL 7035 color and low transparent cover offer a sleek design. With a spacious internal dimension of 10.83" x 12.80" x 4.72", it ensures ample space for various applications. Additionally, it meets the glow wire resistance standard of 1202 °F (650 °C) IEC 60695-2-11 for enhanced safety.
Specifications
Enclosure Composition
ABS
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Height
13.43"
Enclosure Width
11.46"
Enclosure Depth
5.04"
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Impact Rating
IK07
Features

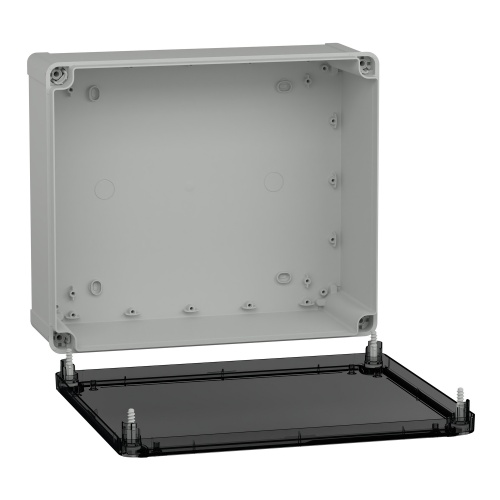

Thalassa TBS industrial ABS box with transparent cover H20
Int is 325 x 275 x 120 mm

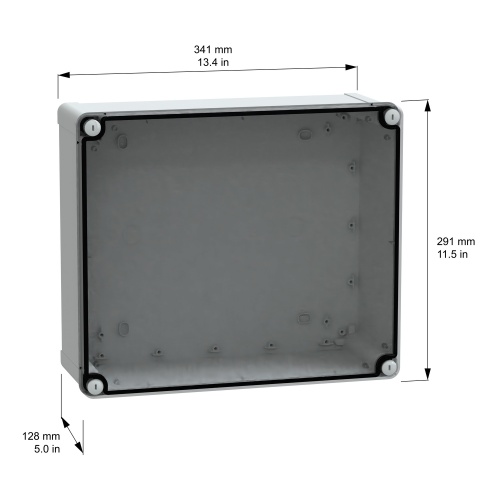

Ext is 341 x 291 x 128 mm
Wall mounted enclosure
Low transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
