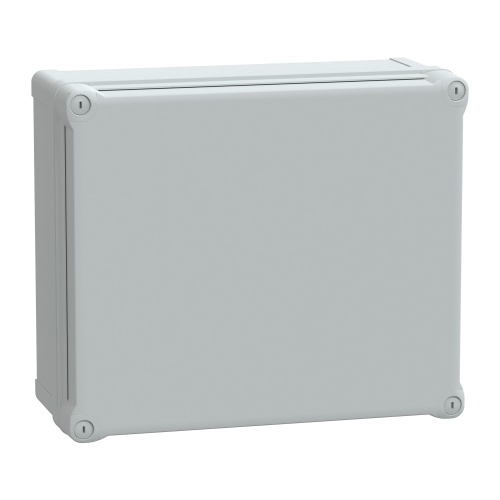

Schneider Electric NSYTBS342916H Thalassa TBS Wall mounted ABS Enclosure - IP66, 13.43" x 11.46" x 6.61" (HxWxD)
Normally In Stock
Code: 592086
Schneider Electric NSYTBS342916H - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 13.43" x 11.46" x 6.61" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$58.56
Sale Price
$48.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

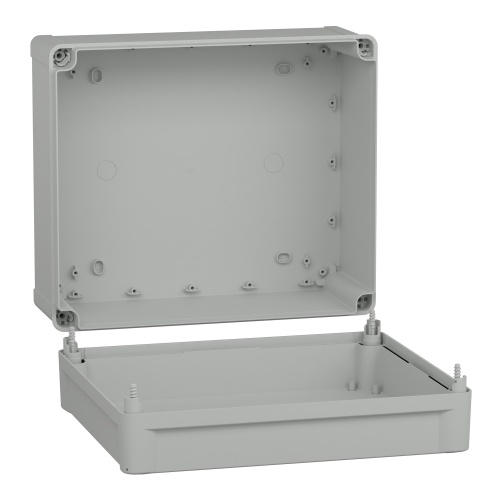

Thalassa TBS enclosure ( NSYTBS342916H) by Schneider Electric is a wall-mounted solution made from ABS material. The gray RAL 7035 color and high plain cover ensure a sleek appearance. With a removable cover and captive screws, installation and maintenance are hassle-free. This Class II insulated enclosure has an internal dimension of 10.83" x 12.80" x 6.30". It offers a wide operating temperature range of -13 to 140 °F (-25 to 60 °C) and excellent glow wire resistance of 1202 °F (650 °C) according to IEC standards.
Specifications
Enclosure Composition
ABS
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Height
13.43"
Enclosure Width
11.46"
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Depth
6.61"
Enclosure Impact Rating
IK07
Features
Thalassa TBS industrial ABS box with opaque cover H60
Int is 325 x 275 x 160 mm

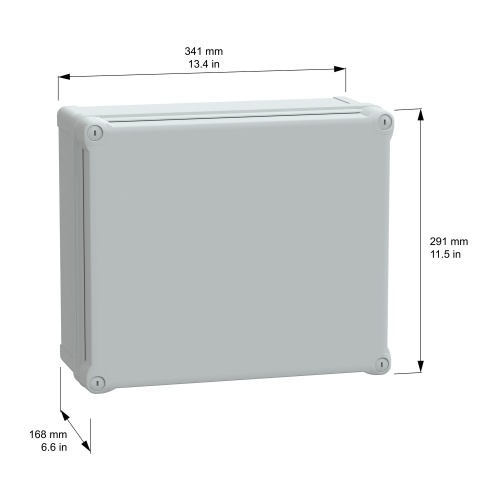

Ext is 341 x 291 x 168 mm
Wall mounted enclosure
High plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
