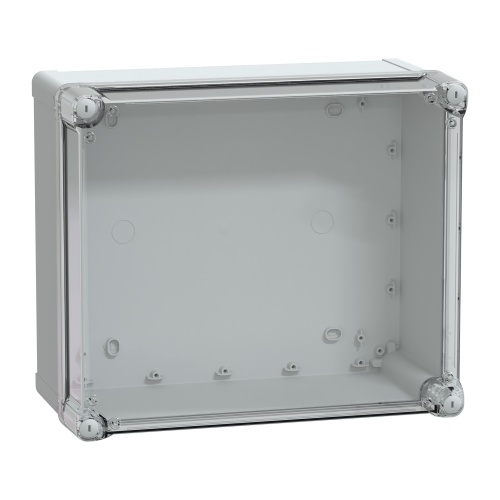

Schneider Electric NSYTBS342916HT Thalassa TBS Wall mounted ABS Enclosure - IP66, 13.43" x 11.46" x 6.61" (HxWxD)
Normally In Stock
Code: 592085
Schneider Electric NSYTBS342916HT - ABS - Captive screw flat outside sealed area - IK07 - IP66 - 13.43" x 11.46" x 6.61" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$166.08
Sale Price
$138.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thalassa TBS enclosure (Original Schneider Electric NSYTBS342916HT) is a wall-mounted solution made of ABS material with a gray RAL 7035 and transparent color. It features a captive screw flat outside sealed area lock type for added security. The enclosure includes a high transparent cover with plastic screws for easy access and removable parts. With dimensions of 10.83" x 12.80" x 6.30", it offers ample internal space. This Class II rated enclosure is capable of operating within a wide temperature range of -13°F to 140°F (-25°C to 60°C) and provides excellent glow wire resistance of up to 1202°F (650°C) as per IEC 60695-2-11.
Specifications
Enclosure Composition
ABS
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Height
13.43"
Enclosure Width
11.46"
Enclosure Latch Type
Captive Screw
Line
Thalassa TBS
Enclosure Depth
6.61"
Enclosure Impact Rating
IK07
Features
Thalassa TBS industrial ABS box with transparent cover H60
Int is 325 x 275 x 160 mm

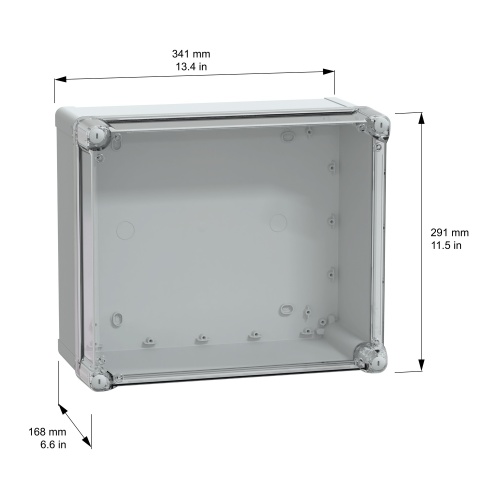

Ext is 341 x 291 x 168 mm
Wall mounted enclosure
High transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV
Fire resistance 650°
ABS (acrylonitrile butadiene-styrene)
IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II
Set of 2
Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
