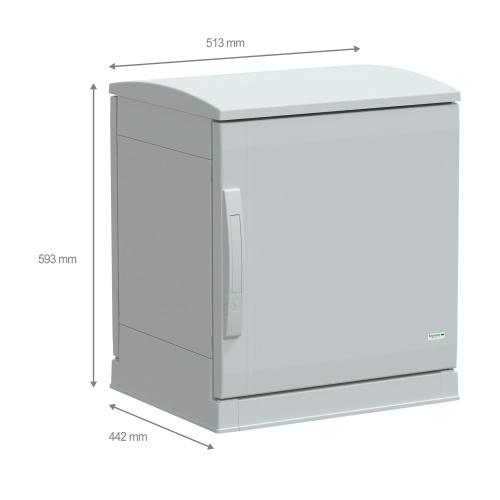

Schneider Electric NSYPLAZT554G Thalassa PLA Floor-standing Fiberglass Reinforced Polyester Enclosure - IP44, 19.69" x 19.69" x 16.54" (HxWxD)
Normally In Stock
Code: 592077
Schneider Electric NSYPLAZT554G - Fiberglass Reinforced Polyester - 2 points handle lock, 5 mm double-bar - IK10 - IP44 - 1 Door: Solid - 19.69" x 19.69" x 16.54" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1153.43
Sale Price
$961.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYPLAZT554G from the Thalassa range is a polyester reinforced with fiberglass enclosure that offers a high level of protection for electrical components. It features a 2-point handle lock with a 5mm double-bar for security, and its removable parts include a solid front door, rear panel, and canopy. The enclosure is accessible from the front, bottom, top, and rear, and it is designed for floor-standing mounting. With dimensions of 19.69" x 19.69" x 16.54" (500mm x 500mm x 420mm), this suitable enclosure offers Class II electrical insulation and a IK10 degree of protection. It also provides fire resistance of up to 1760°F (960°C), as per IEC 62208 standards. The version is PLAZT, ensuring reliable performance.
Specifications
Enclosure Mount Type
Free-Standing
Manufacturer
Schneider Electric
Enclosure Width
19.69"
Enclosure Height
19.69"
Enclosure Door Type
Solid
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Line
Thalassa PLA
Enclosure Depth
16.54"
Enclosure Composition
Fiberglass Reinforced Polyester
Enclosure Impact Rating
IK10
Enclosure Latch Type
2 Point Handle Lock
Features
Fiberglass reinforced polyester floor-standing enclosure.
Suitable for indoor or outdoor use.
Harsh environment resistant.
Long life durability in a wide range of temperatures.
Version with canopy, maintaining the quality of the seal outdoors.
Version with integrated plinth and open bottom for easy cable entry.
