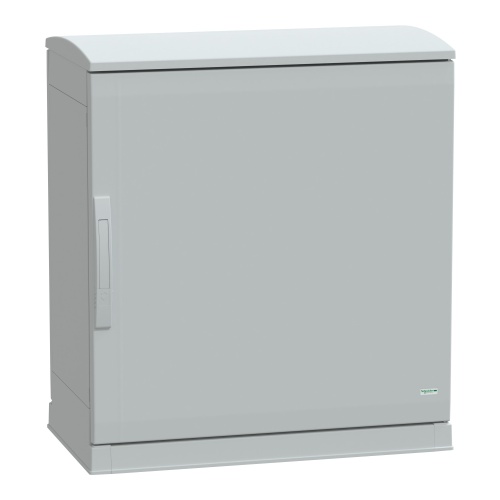

Schneider Electric NSYPLAZT774G Thalassa PLA Floor-standing Fiberglass Reinforced Polyester Enclosure - IP44, 29.53" x 29.53" x 16.54" (HxWxD)
Normally In Stock
Code: 592071
Schneider Electric NSYPLAZT774G - Fiberglass Reinforced Polyester - 2 points handle lock, 5 mm double-bar - IK10 - IP44 - 1 Door: Solid - 29.53" x 29.53" x 16.54" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$919.50
Sale Price
$766.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

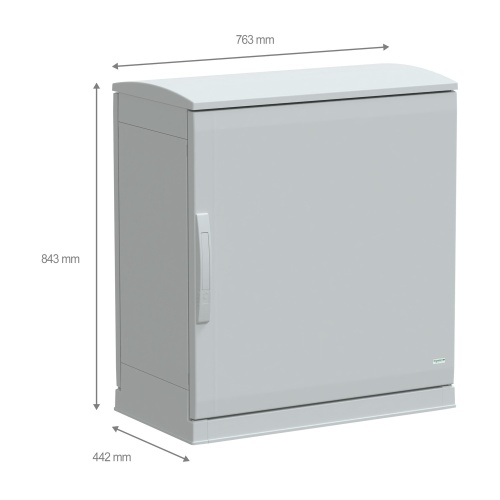

Schneider Electric Thalassa PLA enclosure ( NSYPLAZT774G) is a floor-standing, suitable enclosure made of polyester reinforced with fibreglass. It features a solid front door that can be opened from either side (reversible 180°) and a 2 points handle lock with a 5 mm double-bar for added security. The enclosure's removable parts include the door, rear panel, and canopy, allowing for easy access during operation. With accessibility from the bottom, rear, top, and front, it offers convenience. With a nominal depth of 16.54 in (420 mm), nominal height of 29.53 in (750 mm), and nominal width of 29.53 in (750 mm), it provides ample space. The enclosure is classified as Class II electrical insulation and has a high IK degree of protection (IK10 IEC 62262) with a fire resistance of 1760 °F (960 °C) IEC 62208. The Thalassa PLA enclosure is part of the PLAZT version series.
Specifications
Enclosure Mount Type
Free-Standing
Enclosure Height
29.53"
Manufacturer
Schneider Electric
Enclosure Width
29.53"
Enclosure Door Type
Solid
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Line
Thalassa PLA
Enclosure Depth
16.54"
Enclosure Composition
Fiberglass Reinforced Polyester
Enclosure Impact Rating
IK10
Enclosure Latch Type
2 Point Handle Lock
Features
Fiberglass reinforced polyester floor-standing enclosure.
Suitable for indoor or outdoor use.
Harsh environment resistant.
Long life durability in a wide range of temperatures.
Version with canopy, maintaining the quality of the seal outdoors.
Version with integrated plinth and open bottom for easy cable entry.
