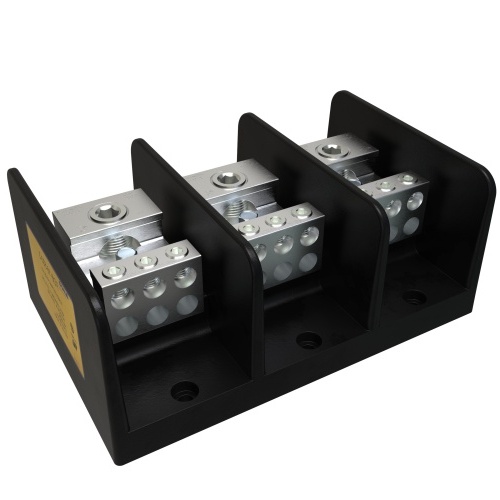

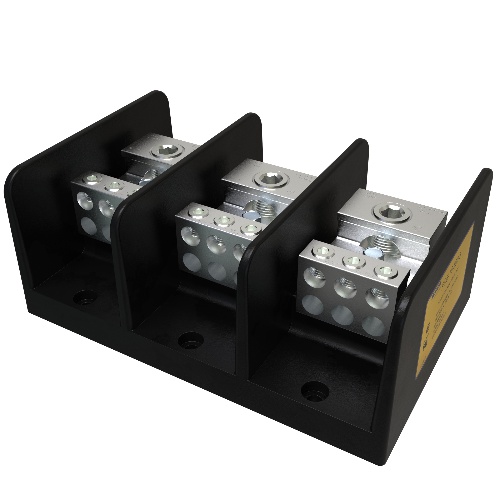

Ilsco PDB-16-500-3 Power Distribution Block - Aluminum, 500-6 AWG, Solid, 600 V, 1/4", 380 Amp, Black
Normally In Stock
Code: 591295
Ilsco PDB-16-500-3 - Power Distribution Block, Dual Rated, Line Conductor Range 500-6, Load Range 2/0-14, 1 Port Per Pole Line Side, 6 Ports Per Pole Load Side, 3 Pole, UL, CSA
Condition: New
CALL FOR LEAD TIME$644.10
Sale Price
$495.46
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco PDB-16-500-3 - Power Distribution Block with 3 poles, UL 1059 Recognized, 600V voltage rating. Dual-rated for aluminum and copper. Aluminum construction with tin finish. Line conductor range 500-6, load range 2/0-14. Mounting holes spaced 4.75" apart. Drive sizes: Main 3/8, Tap 3/16. 7 conductors per port. Ideal for industrial applications.
Specifications
Fuse Voltage Rating
600 Volts
Component
Power Distribution Block
Manufacturer
Ilsco
Number of Conductors
7
Fuse Amperage Rating
380 Amp
Number of Poles
3 Pole
Conductor Type
Solid
Body/Insulating Material
Aluminum
Wire Gauge
500-6 AWG
Features
Multiple taps
Range taking
Valox* insulating base
Electro-tin plated
Manufactured from high strength aluminum
UL Recognized rated 90˚ C and is CSA Certified,
rated for 600 volts
