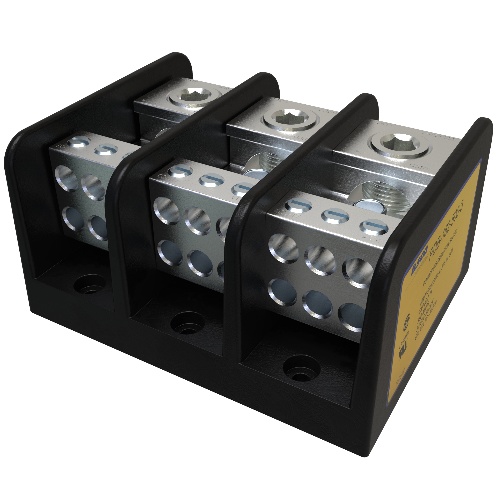

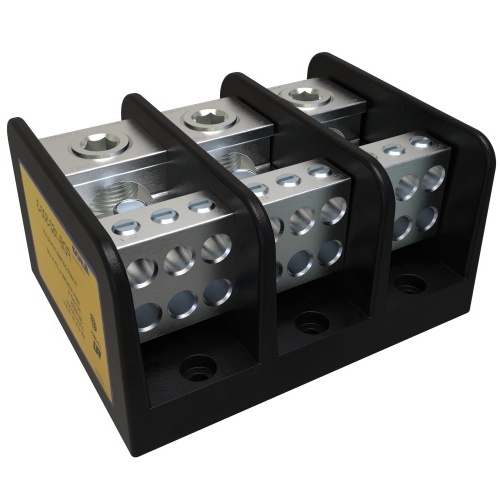

Ilsco PDB-162-500-3 Power Distribution Block - Aluminum, 500-4 AWG, Solid, 600 V, #10, 460 Amp, Black
Normally In Stock
Code: 591291
Ilsco PDB-162-500-3 - Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 2-14, 1 Port Per Pole Line Side, 6 Ports Per Pole Load Side, 3 Pole, UL, CSA
Condition: New
CALL FOR LEAD TIME$564.11
Sale Price
$433.93
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco PDB-162-500-3 - This Power Distribution Block is a 3-pole, 21 port design capable of handling 460 Amps at 600V. Dual Rated for aluminum and copper conductors, with mechanical connections and zinc plated steel hardware. UL and CSA approved, with a temperature rating of 90°C. Mounting holes spaced 3.375 inches apart. Ideal for industrial applications.
Specifications
Fuse Voltage Rating
600 Volts
Component
Power Distribution Block
Manufacturer
Ilsco
Number of Conductors
7
Number of Poles
3 Pole
Fuse Amperage Rating
460 Amp
Conductor Type
Solid
Body/Insulating Material
Aluminum
Wire Gauge
500-4 AWG
Features
Multiple taps
Range taking
Valox* insulating base
Electro-tin plated
Manufactured from high strength aluminum
UL Recognized rated 90˚ C and is CSA Certified,
rated for 600 volts
