Code: 590886

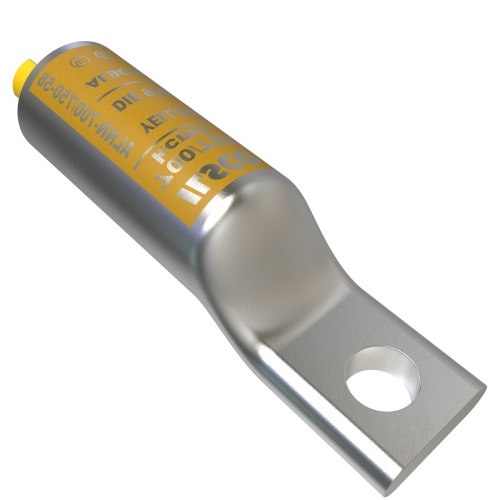

Ilsco ALNN-700/750-58 Compression Lug - Aluminum, 750-700 MCM, Stranded, 35 kV, 5/8", Silver
Normally In Stock
Ilsco ALNN-700/750-58 - Surecrimp Aluminum Compression Lug, Conductor Size 700/750, 1 Hole, 5/8in Bolt Size, Narrow Tang, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$166.44
Sale Price
$128.03
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALNN-700/750-58 - Surecrimp Aluminum Compression Lug for 750-700 kcmil stranded copper conductors. Tin-plated, UL/CSA listed with 35kV voltage rating. Long barrel, narrow tang design with 5/8in bolt size. No sight window, DE-OX® included. Suitable for mounting with 1 hole and 180° connection angle. Tang dimensions: 1.47in length, 1.43in width, 0.435in thickness.
Specifications
Color
Silver
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
5/8"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Terminal for Wire Gauge
750-700 MCM
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Narrow Tang
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
