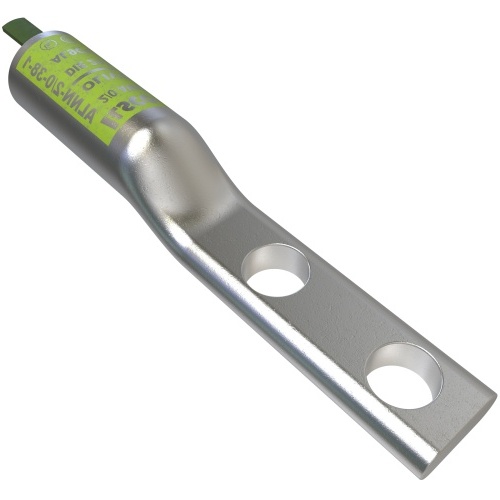

Ilsco ALNN-2/0-38-1 Compression Lug - Aluminum, 2/0 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 590310
Ilsco ALNN-2/0-38-1 - Surecrimp Aluminum Compression Lug, Conductor Size 2/0, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Narrow Tang, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$46.99
Sale Price
$36.15
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALNN-2/0-38-1 - Surecrimp Aluminum Compression Lug for 2/0 copper stranded conductors, with 2 holes, 3/8in bolt size, and 1in hole spacing. Features narrow tang, long barrel, tin plating, and 35 kV voltage rating. UL and CSA listed, suitable for 90°C temperature. DE-OX® included. Suitable for compression connection. Mounting bolt size 3/8in.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
2/0 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Narrow Tang
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
