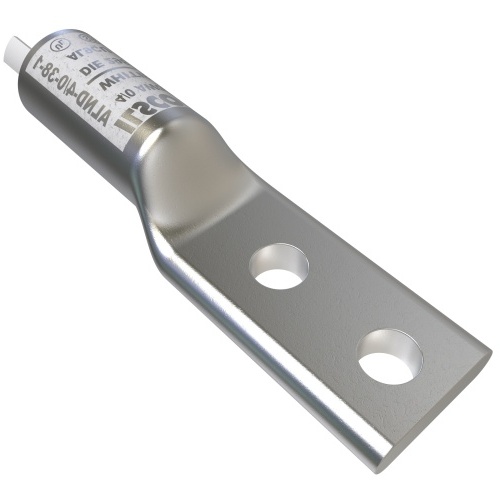

Ilsco ALND-4/0-38-1 Compression Lug - Aluminum, 4/0 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 590308
Ilsco ALND-4/0-38-1 - Surecrimp Aluminum Compression Lug, Conductor Size 4/0, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$39.98
Sale Price
$30.75
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALND-4/0-38-1 - Surecrimp Aluminum Compression Lug for 4/0 conductor size with 2 holes, 3/8in bolt size. Long barrel, tin plated, UL and CSA listed. Dual rated for aluminum conductors. Features DE-OX® technology, 180° connecting angle, 35 kV voltage rating. Mounting hole spacing 1in, 10.3124mm diameter. Tang dimensions 2.005in x 1.17in. UL Control Number 453G.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
4/0 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
