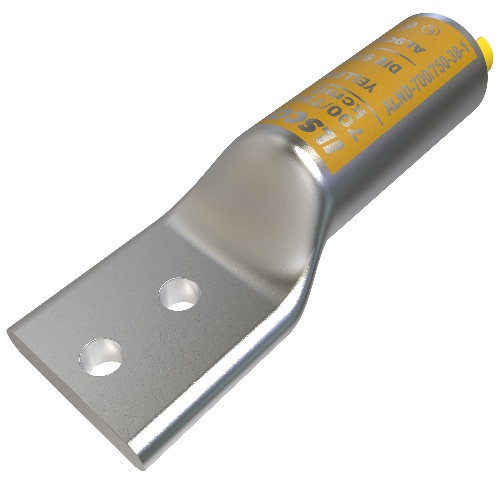

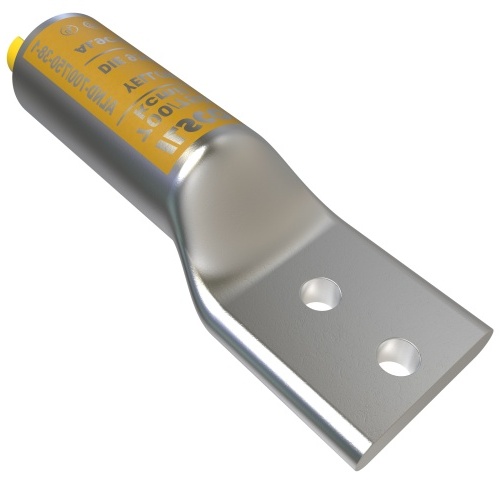

Ilsco ALND-700/750-38-1 Compression Lug - Aluminum, 750-700 MCM, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 589830
Ilsco ALND-700/750-38-1 - Surecrimp Aluminum Compression Lug, Conductor Size 700/750, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$157.88
Sale Price
$121.45
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALND-700/750-38-1 - Surecrimp Aluminum Compression Lug, 700/750 Conductor Size, 2 Holes, 3/8in Bolt Size, Long Barrel for 750 kcmil - 700 kcmil CU/AL. Tin plated, UL/CSA/NEMA approved. 35kV, 90°C, Compression Connection, Tang dimensions 1.937in x 2.048in, 1.46in OD, 0.43in tang thickness. DE-OX® included, Yellow color code. Suitable for C22.2 No. 65-03.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Terminal for Wire Gauge
750-700 MCM
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
